XLM25 wood engraving cnc router machine
keywords：
E-mail：

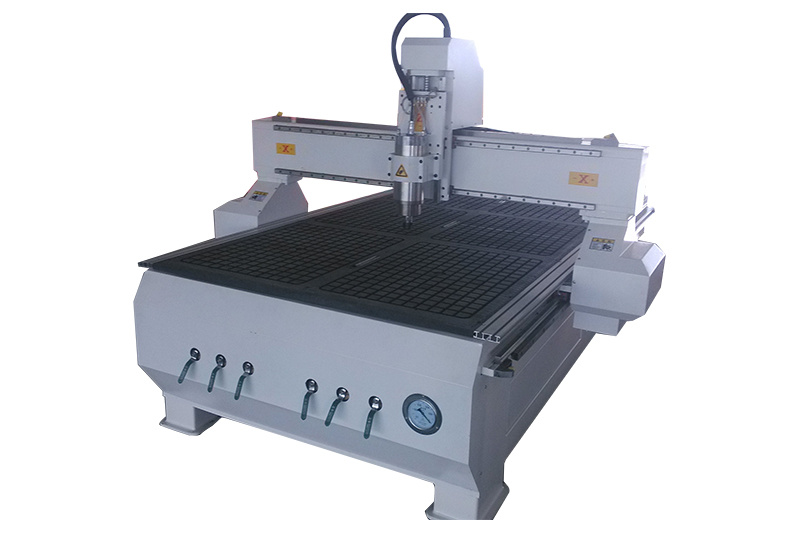

XLM25 wood engraving cnc router machine
Feature:
1. The imported straight-line party type guide rail,double row four row ball slide block,loading capacity,smooth
operation,high precision,long life.Import the ball screw high precision,lower knives accurately.
2. The matching for choose NSK bearings imported from Japan's high-speed water-cooled motor.6 KW air-cooled
spindle 3.0 KW main spindle big power,stable performance.
3. On-line computer typed macro control system,adopting unique intelligent budget rules,give full play to the motor potential
and achieve high speed processing,song linear synchronous,curve more perfect.
4. Software compatibility and can be compatible type3 / Actcam /Castmate /Wentai and so no many kinds of CAD/CAM
design software.
5. Six partition vacuum adsorption mesa,can be effective in different size adsorption material.
6. By using high-speed drive stepping motor and drive,Y axis adopt double motor drive,make high speed operation of
the 25 m/point above empty line speed,with strong cutting spindle can make the sculpture speed more improved.
Parameter
|
Description & Specifications: |
|
|
X Working Area |
1300mm |
|
Y Working Area |
2500mm |
|
Z Working Area |
200mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
Repositioning Positioning Accuracy |
±0.05mm |
|
Table Surface |
Vacume table |
|
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
|
Max. Power Consumption(Without spindle) |
1.84KW |
|
Max. Rapid Travel Rate |
25000mm/min |
|
Max. Working Speed |
15000mm/min |
|
Spindle Power Motor |
5.5kw water cooling spindle |
|
Spindle Speed |
0-18000r/min |
|
Drive Motor |
servo motor and driver |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
AC220V/50Hz |
|
Control System |
DSP Control system |
|
Guide rail |
25 Square rail (TAIWAN BRAND:TBI) |
|
Control cabinet |
Big size Independent cabinet |
|
N.W./G.W. |
900KGS/1000KGS |
|
Packing Size |
3000*1800*1800mm |
|
Software |
Wentai/type3 |
|
Variable-frequency drive(inverter) |
FL- 7.5 KW |
Application of M25 cnc router:
Woodworking industry:stereo wave board processing,cupboard door,craft wood door,wenqi door,screen, process window home furniture product milling form sculpture.Mainly for the production of cupboard door,real wooed,the furniture and so no,also can be used in the production of MDF cutting.
Samples:
