Acrylic CO2 laser cutting machine

Acrylic laser cutting machine

Whether you are an entrepreneur new to CO2 laser cutting machine or a seasoned veteran looking to grow your business, Xuanlin laser machine can help you grow your business. With maximum processing speeds up to 170 inch/sec, they are the fastest and most productive laser engraver on the market. The system`s patented low-maintenance design encloses fragile system critical components in a rugged housing, protecting them from dirt and dust, which significantly minimizes maintenance requirements, down time and overall ownership costs. Acrylic (PMMA) is best suited for laser processing applications such as signage, illuminated advertisements, point of sale displays, and much more. Capable of processing a variety of material depths, cnc laser cutter can even handle panels up to 25 mm thick efficiently, resulting in shiny and flame polished edges without any additional post-processing needed. Acrylic can be laser marked with a fiber laser machine to create a color change, or laser engraved for a matte finish with a CO2 system.

Materials suitable for laser engraving and cutting

Wood
Acrylic
Cloth
Leather
Matter board
Paper
Pressboard
Rubber
Wood veneer
Fiberglass
Plastic

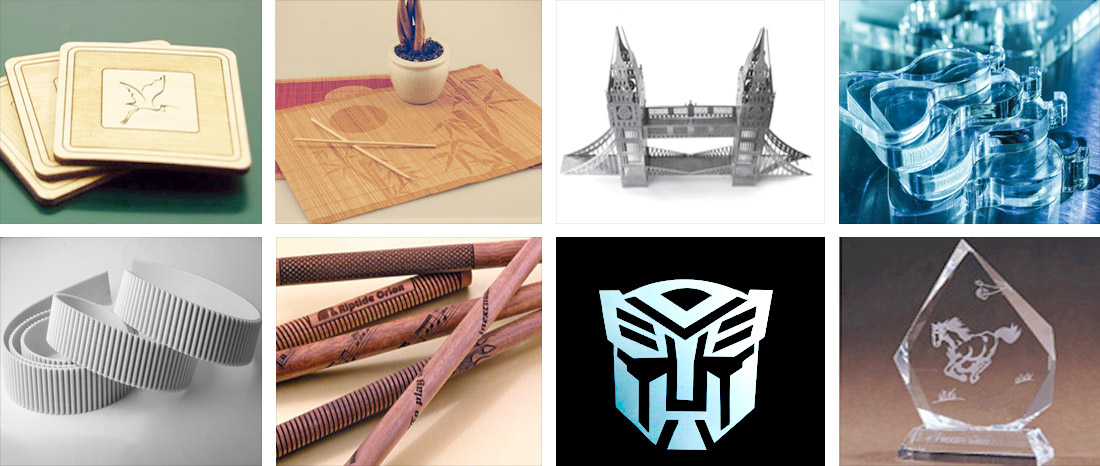

Impressions

acrylic-laser-cutting laser cutter

Technical Parameter

Model	XL1390SA
Laser Power:	130W(Domestic or imported laser source)
Working Area:	900x1300mm
Positioning Accuracy:	±0.05mm
Positioning Speed:	20mm/min
Whole size:	160023031227
Electricity demand:	220V±10%/10A
Whole weight:	400kg

cutting capability

Thickness	mm/min
10mm Acrylic	300mm/min
20mm Acrylic	60mm/min
30mm Acrylic	30mm/min
9mmMDF	280mm/min

XL1390SA compared with the ordinary belt machine

Advantage	XL1390SA	Ordinary belt machine
Higher accuracy	Import servo motor+ball screw, ensure the consistency of batch processing products.	Stepper motor+belt.It could not ensure products have same size when batch processing.
Better stability	Professional constant temperature water cooling machine,Temperature control precision±1℃	Usually water tank+water pump(No refrigeration function)
Better stability	Independent research and development has a monitoring, directed, protective function of high voltage power supply	Ordinary high voltage power supply,don`t have monitoring and protection function.
Run more smoothly	Design of X/Y axis drive to control geometry	Design of drive both ends of the belt pulley through the middle belt pulley,Belt tightness can not be consistent
Cutting thicker, more smooth for cutting	The max thickness could cut 30mm Acrylic. cutting surface smooth and bright.	It only could cut part of 20mm acrylic in a short time, it doesn`t have smooth and bright cutting surface

Applicable materials

Acrylic.MDF.Wood.Perspex.Plastic.Clothes.Paper.Leather.Rubber and other non metal material

Application industry

Advertising, crafts, shoes, toys, computer embroidery cutting, garment industry, model, construction industry
