XL 6090 advertisement cnc router machine
keywords：
E-mail：
XL 6090 advertisement cnc router machine
Features:
1． The cnc router adopts the mode of saving intermittence
2． Memory to ensure the processing point when the blade is broken or postpone situation
3． Specific saving mode of different points
4． X axis adopts popular dust-proof structure to make machine work for a long time
5． The large power cutting spindle does not only increase the fineness of engraving the breast card with screw and the under base is more flat and smooth. The machine is suitable for the architecture mould sign industry, school, enterprise, government to use
Technical parameter:
|
Model |
XL-6090 |
|
X Y working area |
600*900mm |
|
Z working area |
Max 80mm |
|
Table size |
600*900mm |
|
Lathe structure |
Cast aluminum |
|
Guide rail |
Round guide rail /square guide rail |
|
Max. rapid travel rate |
5-6m/min |
|
Max. working speed |
2-3m/min |
|
Max. feeding height |
80mm |
|
Repositioning positioning accuracy |
0.05mm |
|
Command language |
G-code, ugg,mmg,plt |
|
Max. power consumption(without spindle) |
300w |
|
Working voltage |
AC220V/50HZ |
|
Spindle power motor |
1.5KW |
|
Spindle speed |
0-24000rpm/min |
|
Spindle diameter |
80mm ER11 |
|

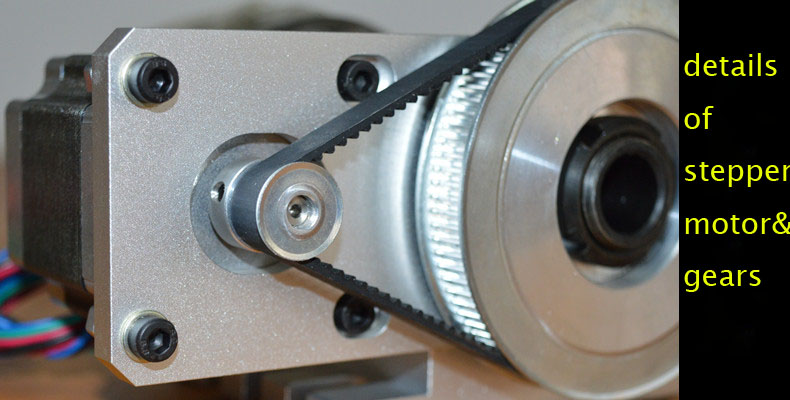

Drive system |
stepper |
|
Motor driver |
Leadshine 542 |
|
Transmission |
Ball screw |
|
Control system |
Rich Auto DSP A 11 |
|
Software |
Type3 |
|
Packaging size |
0.9*1.2*1.2m |
Applicable:
this machine is advertisement products making machine,cutting and engraving wood ,arylic,PVC,MDF,and so on

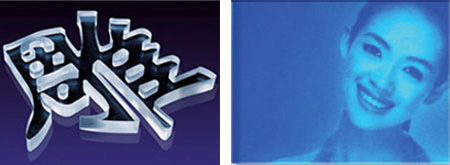

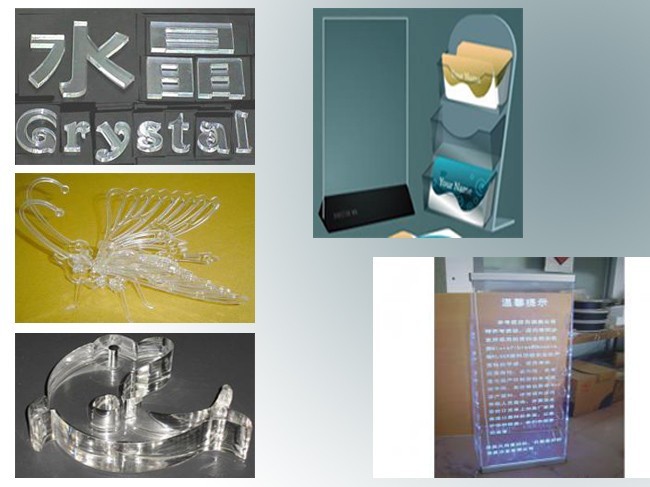

Sample show :
