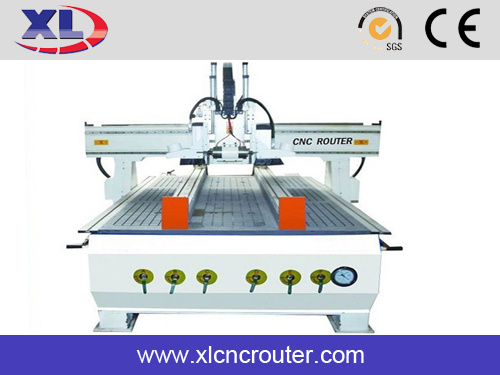

XL1325 wood door professional making cnc router machine
keywords：
E-mail：
XL1325 wood door professional making cnc router machine
★ Features:

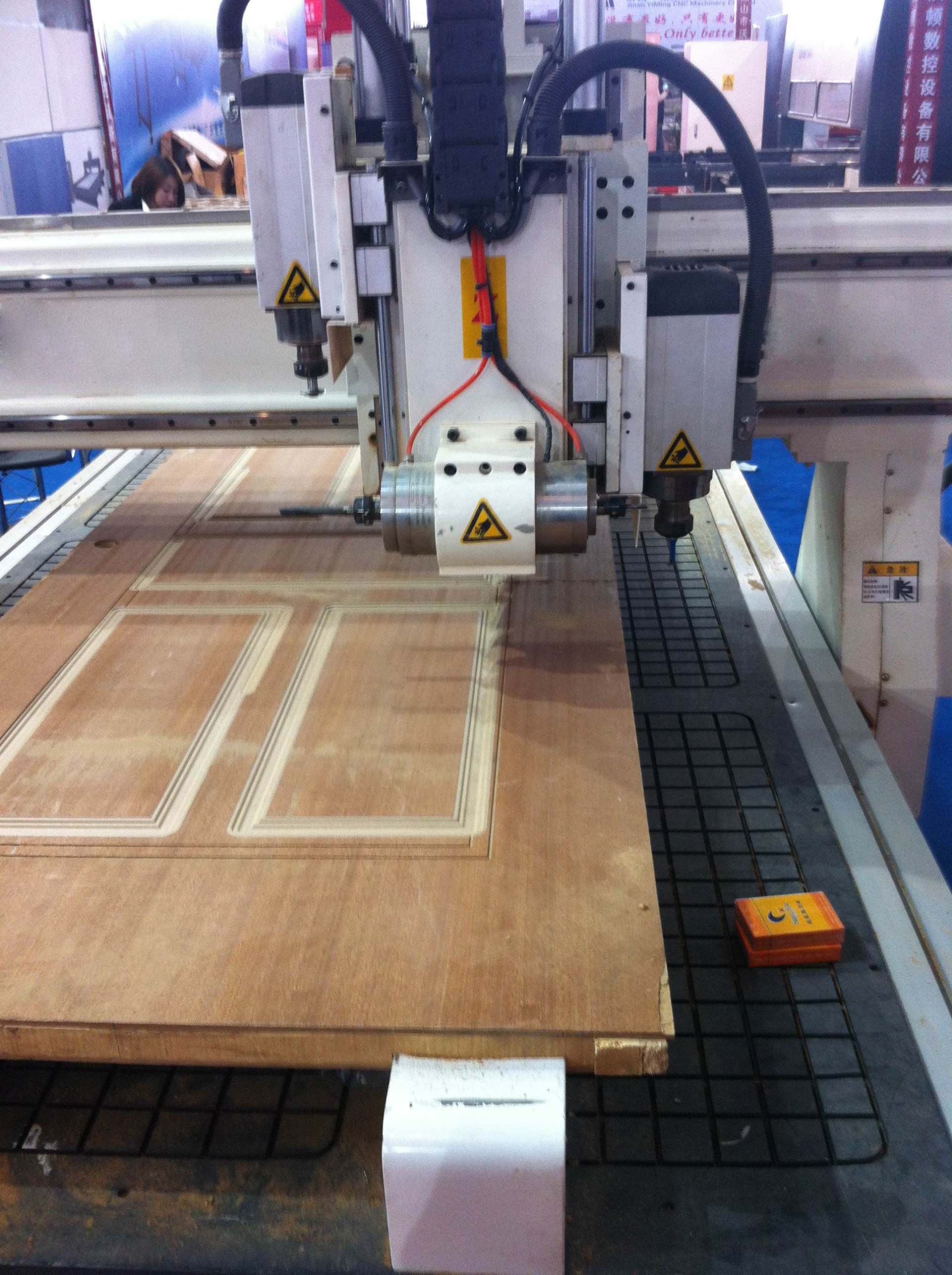

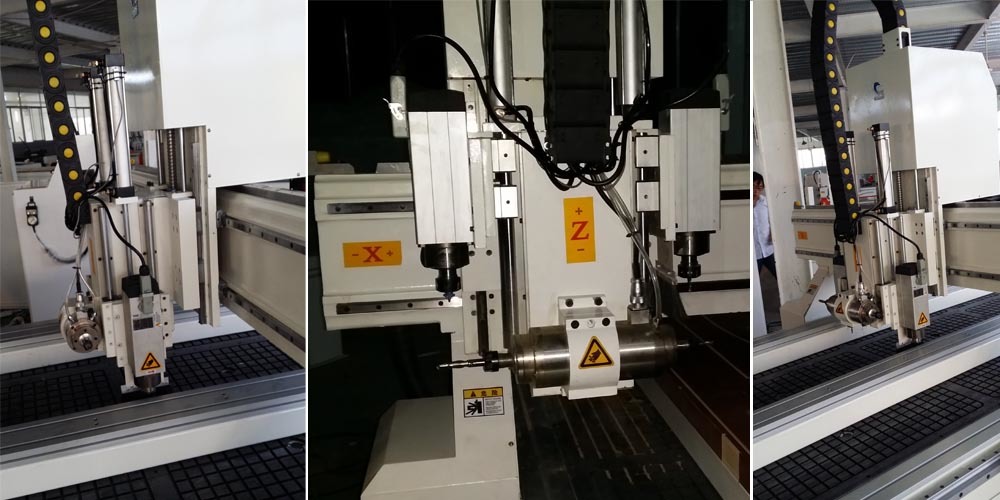

The two spindle can be table engraving at one time
The two spindle can be table engraving separately.
The 3KW water cooling spindle can be drilling the lock hole with two side.
★ Description & Specifications:
|
X Working Area |
1300mm |
|
Y Working Area |
2500mm |
|
Z Working Area |
600mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
Repositioning Positioning Accuracy |
±0.05mm |
|
Body structure |
Steel structure |
|
Table Surface |
Vacuum table |
|
X,Y ,Z Structure |
Taiwan square guide rail for XYZ axis, gear wheel for XY axis, ball screw for Z axis |
|
Max. Power Consumption(Without spindle) |
1.84KW |
|
Max. Rapid Travel Rate |
25000mm/min |
|
Max. Working Speed |
15000mm/min |
|
Spindle |
3.5KW*2 air cooling spindle; 3KW water cooling spindle |
|
Spindle Speed |
0-24000r/min |
|
Drive Motor |
Closed loop servo |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
AC380V/60Hz |
|
Control System |
Original NCstudio |
|
Guide rail |
25 Square rail (TAIWAN BRAND:TBI) |
|
Cutters |
10 pieces with diameter of 6 and 12.7 |
|
Collets |
2 pieces |
|
Dust collector |
Yes |
|
Oiling system |
Manually oiling |
|
Control cabinet |
Independent cabinet |
★Application:
Mainly used for wood furniture industry like processing wood door,cabinet door, art and craft
door, MDF cutting, wood board cutting and processing other nonmetal materials, etc.

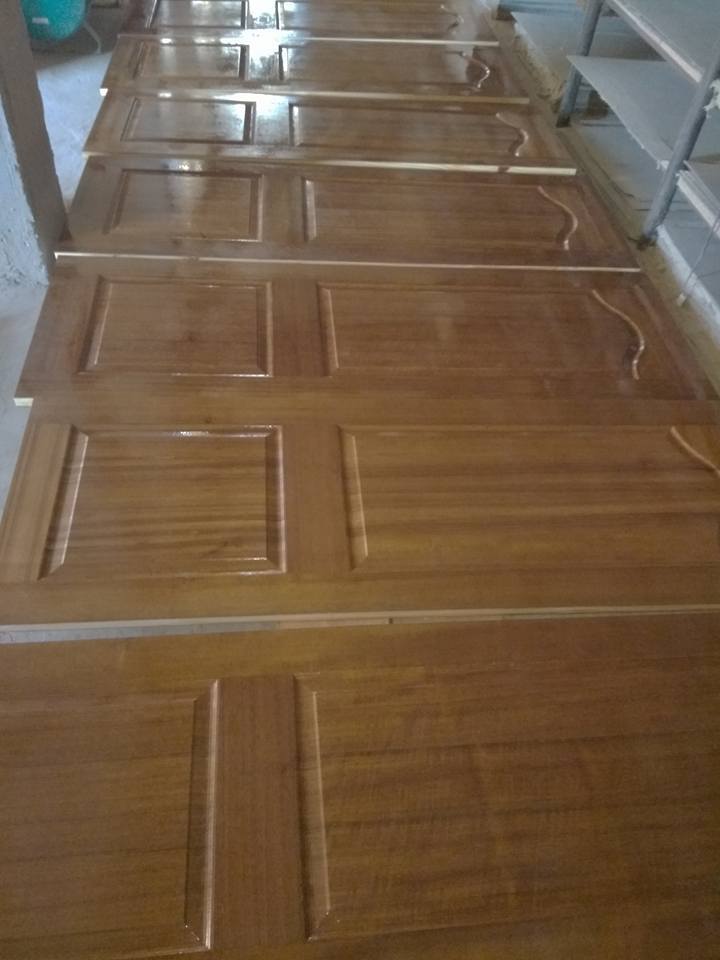

Sample Show
