5-Axis-Wood-Engraving-Cnc-Router
keywords：
E-mail：

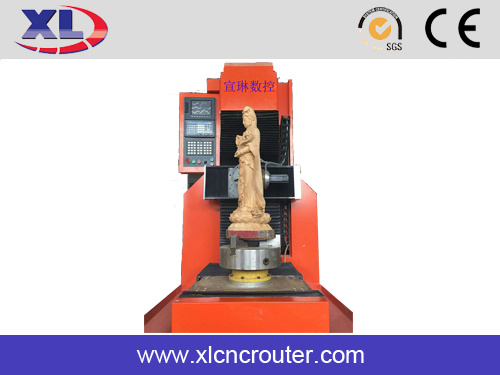

5-Axis-Wood-Engraving-Cnc-Router
Applicable:
Processing stereoscopic 3D process, a complicated process; the human body can be carved 360 °, statues, sculptures, handicrafts, furniture and so on.
Model：XL-8050-1
Parameter:
Working area :800x500（mm）-1
Loading weight :300kg
transmission：servo motor and driver
Dimension：1650x1100x2500(mm）
Spindle speed： 8000-24000 r/min
Repositioning ：0.05mm
Max travel speed :20m/min
Max work speed :15m/min
Weight :800kg
working voltage：AC380V±15％,50Hz
|
NO. |
Name |
Brand &model |
Original |
|
1 |
X axis ball screw |
ABBA-3210 |
Taiwan TBI |
|
2 |
Y axis ball screw |
ABBA-2510 |
Taiwan TBI |
|
3 |
Z axis ball screw |
ABBA-2510 |
Taiwan TBI |
|
4 |
X axis square guide rail |
ABBA-30 |
Taiwan TBI |
|
5 |
Y axis square guide rail |
ABBA-30 |
Taiwan TBI |
|
6 |
Z axis square guide rail |
ABBA-30 |
Taiwan TBI |
|
7 |
X axis Servo motor |
6.NM(110) |
Japanese Servo motor |
|
8 |
Y Axis servo motor |
4.NM(110) |
Japanese Servo motor |
|
9 |
Z axis servo motor |
6.NM(110) |
Japanese Servo motor |
|
10 |
A axis servo motor |
6NM |
Japanese Servo motor |
|
11 |
B axis servo motor |
6NM |
Japanese Servo motor |
|
12 |
X axis servo motor |
EPS2-TA120L |
Japanese Servo motor |
|
13 |
Y axis servo motor |
EPS2-TA075L |
Japanese Servo motor |
|
14 |
Z Axis servo motor |
EPS2-TA150L |
Japanese Servo motor |
|
15 |
Frequency driver |
HCA- 380V |
HILOP |
|
16 |

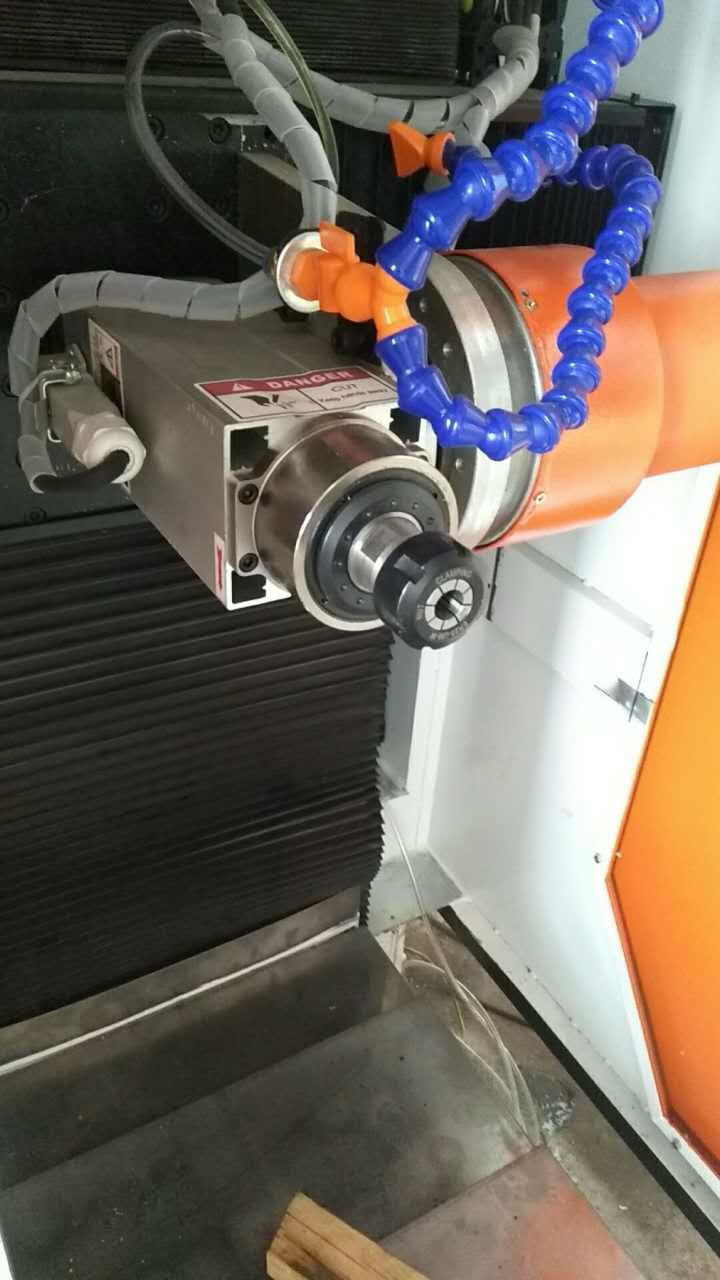

SPINDLE |
3.0KW |
WATER COOLING |
|
17 |
Control system |
NC program software |
Xuanlin |
