Stone Cnc Routers

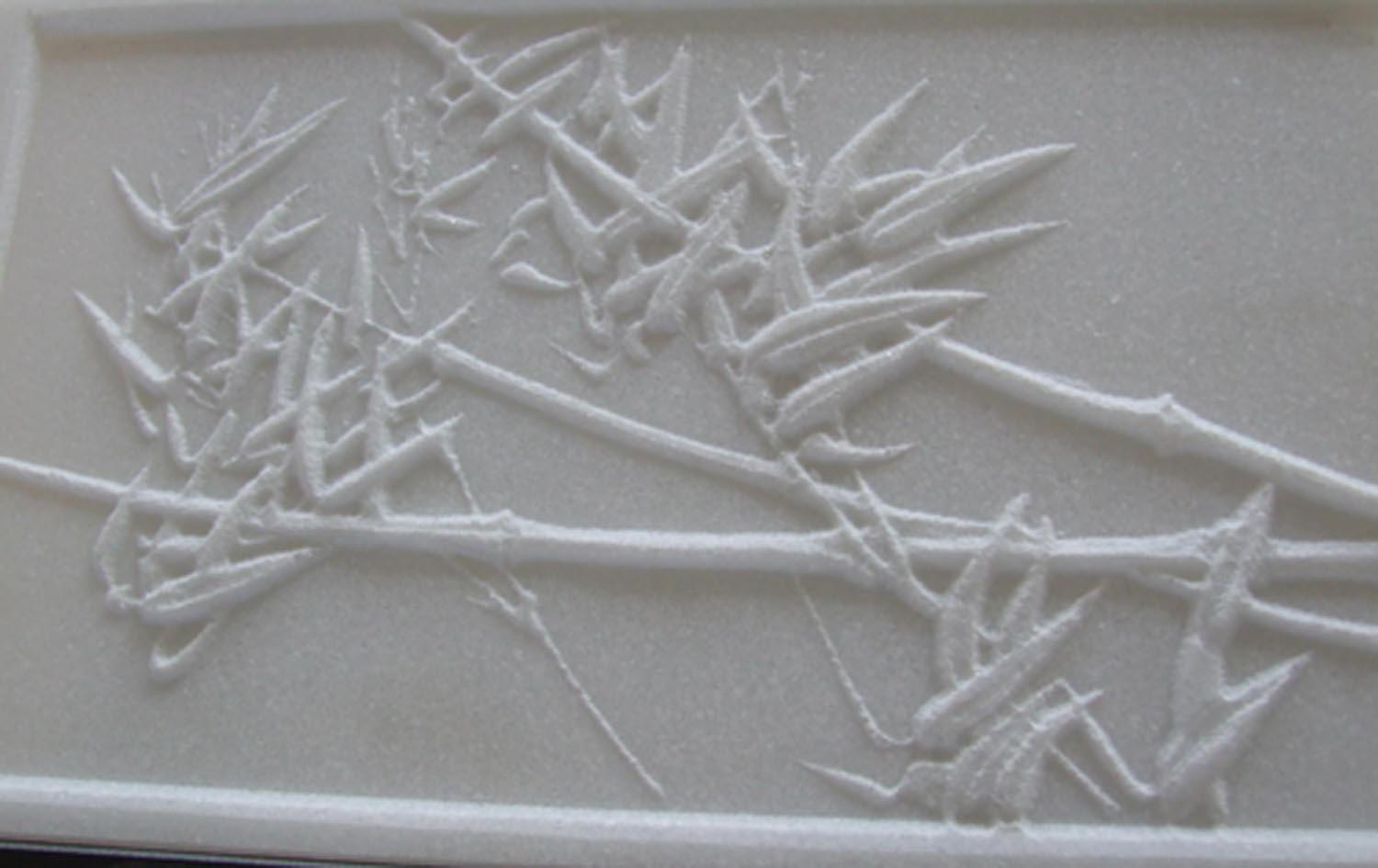

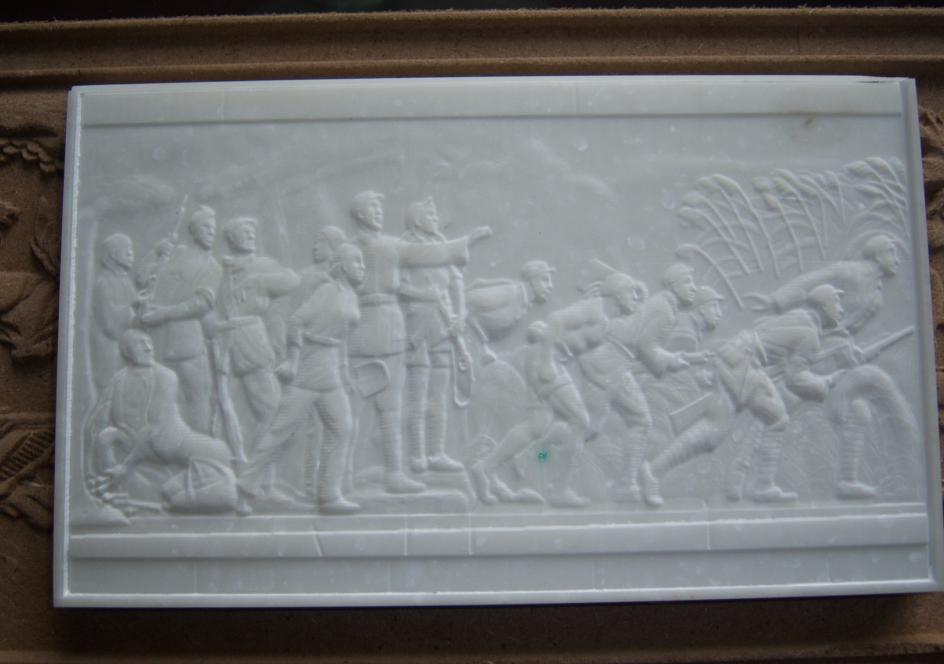

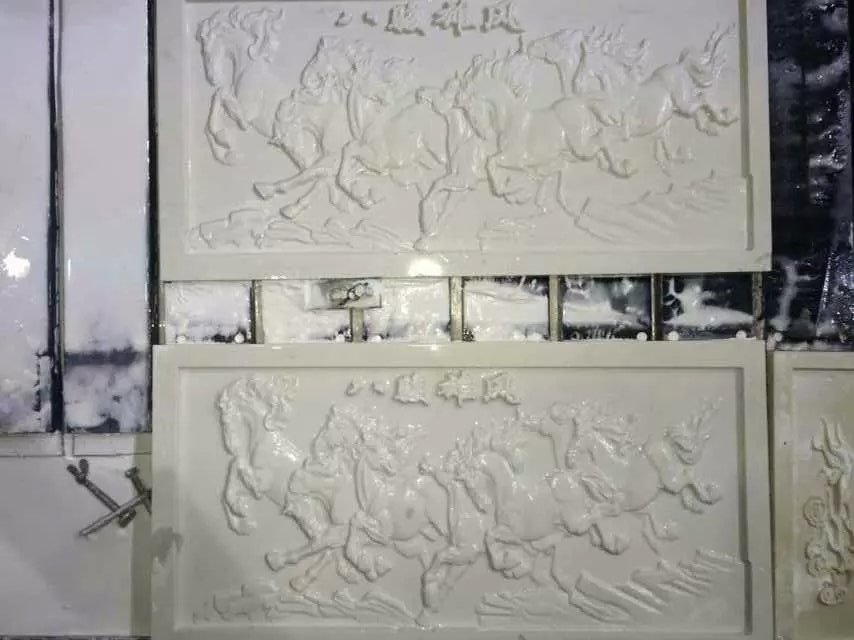

This series of models are mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving

keywords：

stone engraving machine cnc router bluestone engraving machine tile cutting cnc router machine

E-mail：

xlcncrouter@gmail.com

Message

Stone Cnc Routers

Features

1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3.Constant power spindle and motor,hightly cutting capability ,high efficiency.
4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.
6.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines

Parameter

Performance parameter	XL1325/XL1530
X,Y Working area	1300mmx2500mm/1500x3000mm
Z Working area	280mm
Table size	1400mmx2600mm/1600x3100mm
Processing precision	0.05mm
Reposition precision	0.02mm
Table structure	aluminium
X,Y,Z structure	X,Y,Z ballscrew
Command	G CODE
Machine power	2KW
Max processing speed	Max processing speed
Max speed	8000mm/min
Working voltage	AC380V/50Hz
Spindle power	5.5KW
Spindle rotating speed	0-24000rpm/min
Drive motor	Stepper/servo motor
Operation system	DSP
