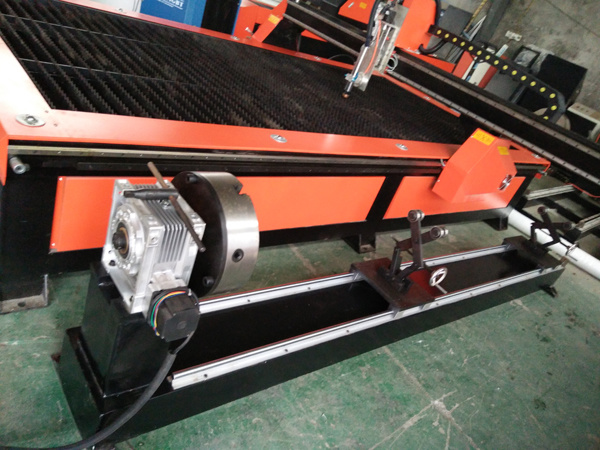

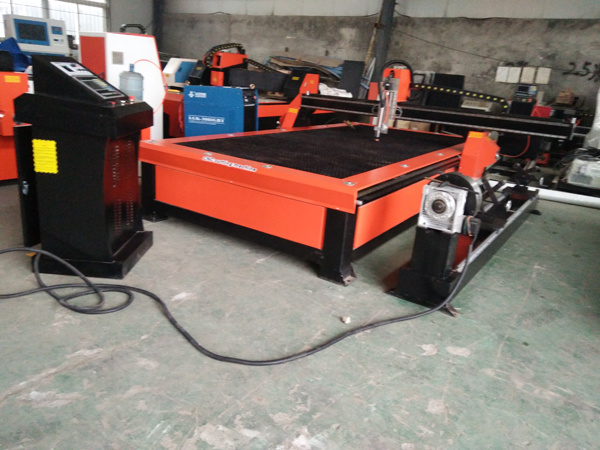

Pipe Plasma Cutting

Introduction：
Space saving ,Quick installation, no foundation request
High accuracy AC servo motor drive
Friendly operation panel, easy-to-use
Automatic program optimization nest path
G and M code recognizable
DXF/DWG files programming and nest
USB data transmission
Features
1.High cutting speed ,high precision and low cost.
2.Machine structure is rational and operation simple,toughness,and durability.
3.Cutting perfect and edge clean,no fallen broken bits so avoid processing once again.
4.Suit for:aluminum, galvanized sheet, stainless steel,iron plate, titanium sheet , etc.
5.Numerical control system configuration is higher,adopt automatic arc striking and stable performance,the success ratio of arc striking can be over 95%.
6.Plasma power and burning torch by famous manufacturer in china and have the national patent.
7.With other advertising equipment (Suck plastic machine,metal grooving,metal bending machine)auxiliary to use can finish various of lettlers,replaced manual craft and the working efficiency can reach more than ten times.
8.Specific to cutting sheet metal for Three-dimensional advertising luminous lettler and convex lettler,the accuracy is higher if provide Hypertherm power from US.
9. Many standard G code path documents generated by software such as Wentai(ARTCUT),CAXA,ARTCAM,TYPE3,etc.canbe supported ,and Dxf format documents generated by software such as AUTOCAD,etc.also can beread via software conversion.U disk is used for control system to change for manufacture documents so that the operation is very convenient and quick.

Parameter

Model	XLP1560
Cutting methods	Plasma cutting/ Flame cutting
Cutting size	1500x6000mm
Machine size	2000x6000x1500mm
Lifting travel	≤100mm
Max travel speed	18000mm/min
Cutting speed	0~15000mm/min
Running accuracy	≤0.005mm ≤0.1mm
Height control Arc pressure Auto	THC Lifting body
Cutting thickness	Less than 20mm is better Less than 30mm is better
Cutting gus Air	Oxygen+Ethyne/Propane
Gas pressure	0.4~0.8 Mpa
power	AC220v/380v 50HZ
Number of nozzles	10 pieces
Support software	Star CAM Fast CAM
