Metal Laser Cutting Machine XL1325M
keywords：
E-mail：
Metal Laser Cutting Machine XL1325M
XL1325M is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.
High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min. 20mm acrylic with perfect cutting quality.
LC1325M machine is matched with the Panasonic Servo System and high precision. ball-screw system to ensure the high precision, running stable and long-operation. The sheet metal is not flat. But the system can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision cutting quality. The laser beam is expanding, so the bigger the working area is, the more difficult the machine is to get the same cutting quality over the whole working area. The fixed beam optical system can guarantees the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality. High efficiency, high precision, stable performance and long life.Low running cost about 5KVA/hour.
Features
Laser tube (150w)
High precision ball-screw system
Panasonic Servo System
Untouched following system
Fixed beam optical system
Industrial chiller
Off-computer controlling system
Specification
|
Model |
XL1325M |
|
Laser- type： |
Sealed CO2 laser tube |
|
Laser power: |
150W/180w reci |
|
Cutting area: |
1,300 x2,500mm |
|
Whole machine size: |
3,500x 2,000 x990mm |
|
Cutting speed: |
0 -24,000mm/min |
|
Resetting positioning accuracy: |
±0.05mm |
|
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz |
|
Gross power: |
<1,500W |
|
Auto height adjuster : |
Yes |
|
Operating temperature: |
0 - 45℃ |
|
Operating humidity: |
5- 95% |
|
Minimum character: |
English 1 x 1mm |
|
Graphic format supported: |
BMP,PLT, DST, DXF, and AI |
|
Driving system: |
stepper |
|
Cooling mode: |
CW5000 |
|
Auxiliary equipments: |
Exhaust-fans, air-exhaust pipe |
|
Controlling software: |
DSP control system. |
|
Compatible software: |
CorelDraw AutoCAD Photoshop |
|
Net Weight: |
800kg |
Application
|
Laser power |
150w |
|||
|
Material |
Acrylic |
MDF |
Stainless steel |
Carbon steel |
|
Cutting thickness |
30mm |
10mm |
1.2mm |
1.2mm |
150W Cutting speed
|
Material |
Cutting thickness |
Cutting speed （mm/min） |
|
Stainless steel |
0.5mm |
2700 |
|
1mm |
1800 |
|
|
1.2mm |
1000-1200 |
|
|
Carbon steel
|
0.5mm |
3000 |
|
1mm |
1800 |
|
|
1.2mm |
1000-1200 |
|
|
Acrylic |
10mm |
300 |
|
20mm |
90-120 |
|
|
MDF |
10mm |
300-400 |

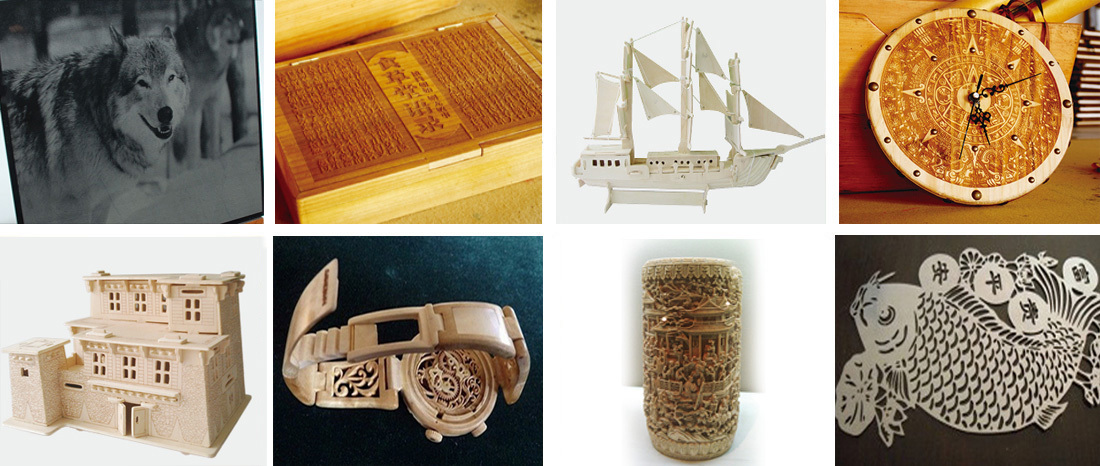

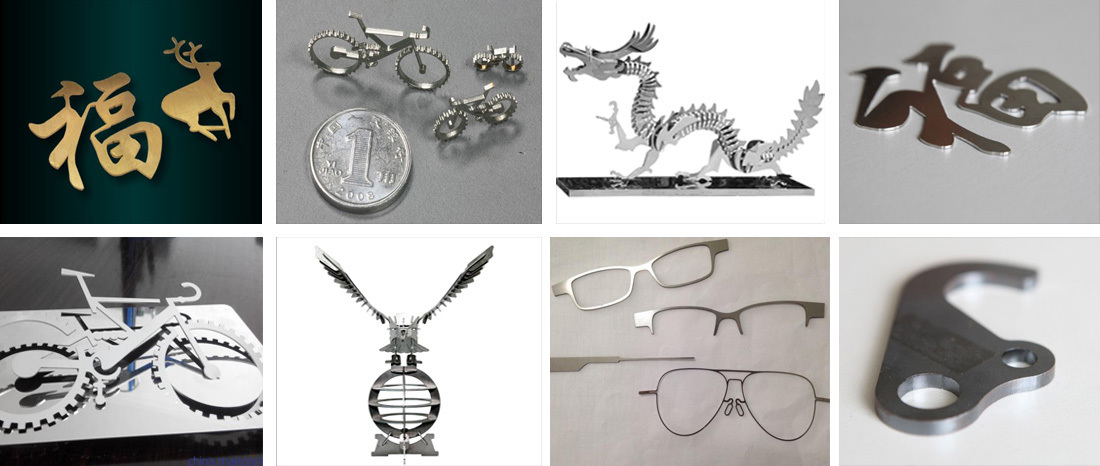

Sample show
