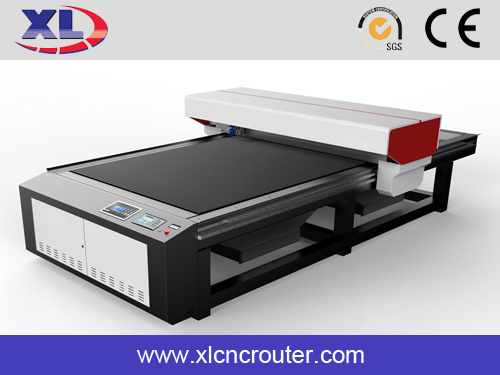

XL1325H Metal&Non Metal Laser Cutting Machine
keywords：
E-mail：
XL1325H Metal&Non Metal Laser Cutting Machine
This 1325D model machine which transmission is gears, and this is multi-function machine, which can cut non metal materials and metal materials, such as Stainless, carbon steel , wood, organic glass, plastic, garments, paper, leather, rubber
Features
(1) Control system: high-speed DSP real-time motion control system that supports computer-
to-output and U disk and other files directly read mode;
(2) Adopt the U.S. Ⅱ - Ⅵ high-performance optical Reflecting Mirrors, Focusing Lens;
(3) TBI Taiwanese high-precision Ball Screw Driver, which ensure the accuracy of the system working;
(4) Imported high-performance servo motor;Y double-screw drive shaft, cutting trajectory smooth.
Specification
|
Model |
XL1325 |
|
Laser- type： |
Sealed CO2 laser tube |
|
Laser power: |
150W/180w reci |
|
Cutting area: |
1,300 x2,500mm |
|
Whole machine size: |
3,500x 2,000 x990mm |
|
Cutting speed: |
0 -24,000mm/min |
|
Resetting positioning accuracy: |
±0.05mm |
|
Working voltage: |
AC 110 - 220V±10%, 50 - 60Hz |
|
Gross power: |
<1,500W |
|
Auto height adjuster : |
Yes |
|
Operating temperature: |
0 - 45℃ |
|
Operating humidity: |
5- 95% |
|
Minimum character: |
English 1 x 1mm |
|
Graphic format supported: |
BMP,PLT, DST, DXF, and AI |
|
Driving system: |
stepper |
|
Cooling mode: |
CW5000 |
|
Auxiliary equipments: |
Exhaust-fans, air-exhaust pipe |
|
Controlling software: |
DSP control system. |
|
Compatible software: |
CorelDraw AutoCAD Photoshop |
|
Net Weight: |
800kg |
Applicable materials
Stainless, carbon steel , wood, organic glass, plastic, garments, paper, leather, rubber,and other nonmetal materials.
Applicable industries
advertisement, arts and crafts,shoes,toys, computerized embroidery and clipping, garments,model and construction industry.
