XL1325D Metal&Non Metal Laser Cutting Machine

XL1325 is our latest high-precision laser cutting equipment. Mechanical systems using high-precision Ball Screw Driver Mechanism, X, Y direction of transmission using split design, which are an excellent solution for the reduction of cutting precision of the traditional laser cutting machine caused by the interference cutting trajectory. Cutting path becomes more smoother. Excellent electrical system design, system stability and high interference. With advanced Real-time embedded DSP laser cutting control system, run faster, and speed automatically matches the laser intensity, the effect of cutting corners to achieve the perfect consistency. Imported high-precision optical system optical components, a substantial increase in the efficiency of light reflection and focusing effect, greatly improving the efficiency of laser energy control, work piece quality and class.
Features

(1) Control system: high-speed DSP real-time motion control system that supports computer-

to-output and U disk and other files directly read mode;

(2) Adopt the U.S. Ⅱ - Ⅵ high-performance optical Reflecting Mirrors, Focusing Lens;

(3) TBI Taiwanese high-precision Ball Screw Driver, which ensure the accuracy of the system working;
(4) Imported high-performance servo motor;Y double-screw drive shaft, cutting trajectory smooth.

Specification

Model	XL1325
Laser- type：	Sealed CO₂ laser tube
Laser power:	150W/180w reci
Cutting area:	1,300 x2,500mm
Whole machine size:	3,500x 2,000 x990mm
Cutting speed:	0 -24,000mm/min
Resetting positioning accuracy:	±0.05mm
Working voltage:	AC 110 - 220V±10%, 50 - 60Hz
Gross power:	<1,500W
Auto height adjuster :	Yes
Operating temperature:	0 - 45℃
Operating humidity:	5- 95%
Minimum character:	English 1 x 1mm
Graphic format supported:	BMP,PLT, DST, DXF, and AI
Driving system:	stepper
Cooling mode:	CW5000
Auxiliary equipments:	Exhaust-fans, air-exhaust pipe
Controlling software:	DSP control system.
Compatible software:	CorelDraw AutoCAD Photoshop
Net Weight:	800kg

Applicable materials

Stainless, carbon steel , wood, organic glass, plastic, garments, paper, leather, rubber,and other nonmetal materials.

Applicable industries

advertisement, arts and crafts,shoes,toys, computerized embroidery and clipping, garments,model and construction industry.

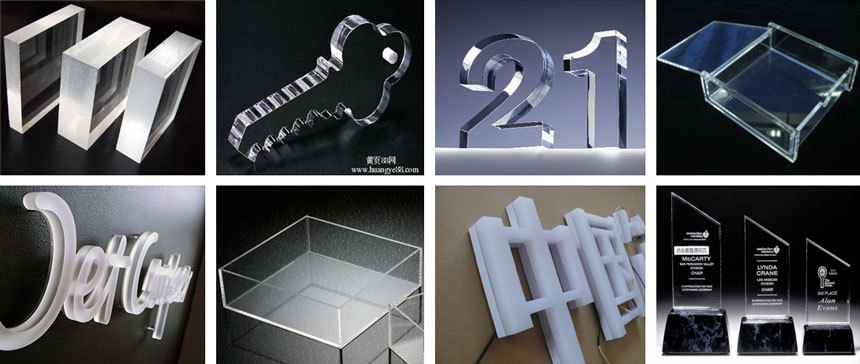

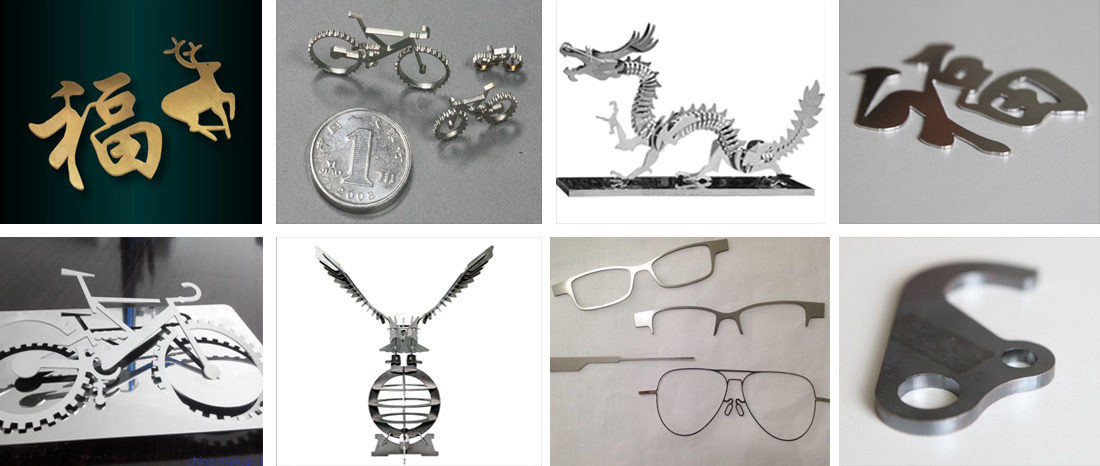

Samples show
