XL 3015 G Sealed Exchange Platform Fiber Cutting Machine
keywords：
E-mail：
XL 3015 G Sealed Exchange Platform Fiber Cutting Machine
Features
XL3015G adopts the advanced German IPG fiber laser power source, available to cutting most of the metal sheet materials. Integrated design of machines tool accessories, fast disassemble and installation; funnel collection of both left side and right side, space-saving, energy saving, and low cost. Movable Gantry machine tool structure, to ensure long-time stability and security; Import servo systems and CNC systems, with good compatibility, strong stability, convenient maintenance and excellent processing capacity.
Features
1.Import original fiber laser power source , good beam quality, stable performance, with reflection lens and light path adjustment, maintenance free essentially, 100,000 hours working time
2. High rigidity machine bed, adopts exclusive standard annealing processing with high-temperature NC electric resistance furnace, ensure long-time stable precision of the machine tool
3. High transformation efficiency of fiber laser, which up to 30%, saving the working power consumption by a large margin, achieves low operating costs
4. Adopts the imported original guide transmission and servo motors, which offers high precision and high speed
5. Smooth cutting edge, little deformation
6. Low power consumption, energy saving, overall power consumption 1/3-1/5 of the same power YAG machines, 3 times sheet metal cutting speed
Technical parameters
|
Model: |
XL3015G |
|
Laser source: |
IPG or Raycus (Optional) |
|
Fiber laser power: |
1000W 2000W (Optional) |
|
X, Y and Z axis stroke : |
3025mm, 1525mm, 100mm |
|
Table height: |
900mm |
|
Weight : |
7500KG |
|
Appearance size : |
7900*2950*1900mm |
|
Machine Volume: |
46.8CBM |
|
X and Y positioning accuracy : |
±0.03mm |
|
Max speed : |
200m/min |
|
Max acceleration : |
1.5G |
|
Max load-bearing of work table : |
100KG |
|
Drive type of X, Y axis: |
imported servo drive( Panasonic, Japan) |
|
Power consumption of whole machine : |
< 15KW (< 12KW-1 KW) |
|
Rated voltage and frequency : |
380V/50Hz/60Hz/60A |
|
Operating temperature: |
0℃-40℃ |
|
Control system: |
MPC6595 |
|
Driving mode: |
Precision Dual-drive Gear |
|
Specified voltage and frequency: |
AC380V 50HZ/ 60HZ 60A |
Appication Industries
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries;
Application materials
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials
Cutting speed
Professional cutting of 0.5 ~ 6mm carbon steel plate, 0.5 ~ 5mm stainless steel, galvanized sheet, electrolytic plate, silicon steel and other thin metal material.
cutting ability
specially used in cutting 0.5~14mm carbon steel,0.5~10mm stainless steel,galvanized plate lectro-Galvanized Steel,silicon steel,0.5~3mm aluminium alloy,0.5~2mm brass and red copper etc thin metal sheet (The laser brand can be customized, power optional from 500w-4000w )

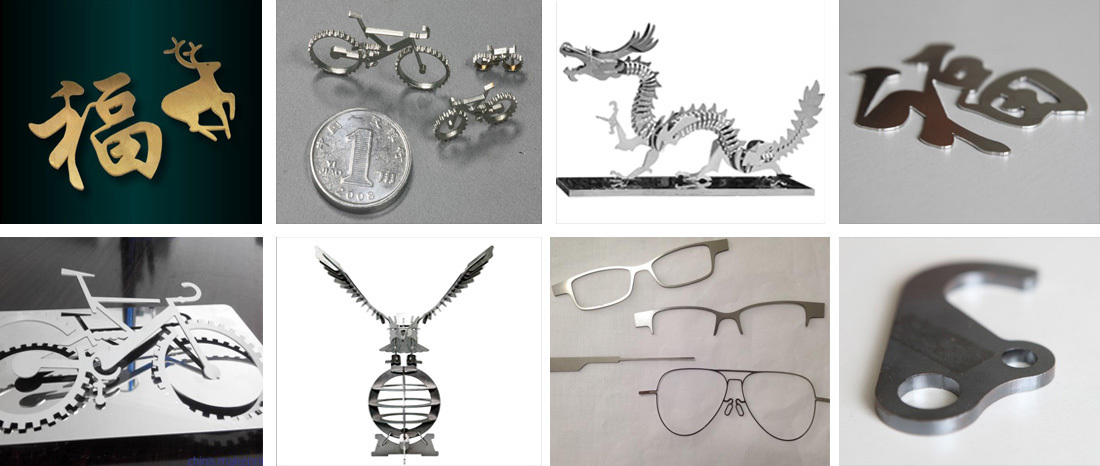

Samples
