XL 1325 Fiber Laser Machine
Product description
LXL-1325 is a most valuable entry-level fiber cutting machine, using the self-developed machine gantry structure, the whole
machine use high strength seamless steel for a better rigidity, high temperature annealing machine, rack for20 years without
deformation,accompanied by 200w high quality domestic fiber optic devices comes with excellent beam to make that the cutting lines more Sophisticated and more efficiently. The rail screw is imported high precision brand, also additionally equipped with a dust
removal device, drag feeding device, high temperature alarm and industrial cooling devices.

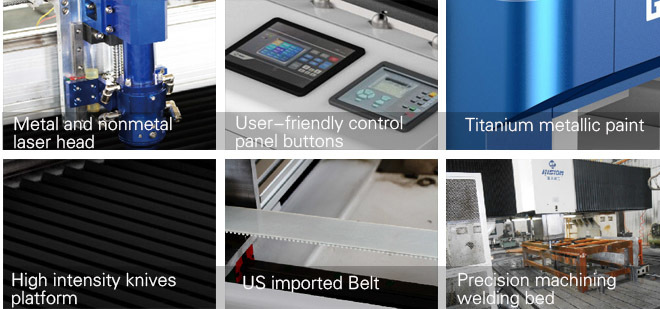

Product features
1. Moved crossbeam with imported high precision ball screw and rail guide transmission makes the stable driving and high precision
work.
2. Machine frame, crossbeam and worktable adopt integral welding, in accordance with the standard large machine, to stress annealing after rough machining, and then vibration aging treatment, can completely eliminate the welding stress and processing. Can also keep high-strength, high precision, and also keep the 20 years of normal use of deformation
3. X and Y axis equip with Japan servo motor, high precision, high speed, largtoque, large Inertia for a steady and durable work.
4. Use MPC6595 based on Windows operating system can perfect match the Laser cut 6.1,collect he function of read file, simple design, output, and processing control, a set of software which can complete the layout to the machining process, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.
Technical parameters
|
Model: |
XL1325 |
|
Laser source: |
IPG or Raycus (Optional) |
|
Fiber laser power: |
500W, 750W, 1000W (Optional) |
|
X, Y and Z axis stroke : |
2525mm, 1325mm, 100mm |
|
Weight : |
1500KG |
|
Appearance size : |
3800*2400*1750mm |
|
Machine size(L*W*H): |
3800*1850*1300mm |
|
X and Y positioning accuracy : |
±0.03mm |
|
Max speed : |
200m/min |
|
Max acceleration : |
1G |
|
Max load-bearing of work table : |
100KG |
|
Drive type of X, Y axis: |
imported servo drive( Panasonic, Japan) |
|
Power consumption of whole machine : |
< 15KW (< 12KW-1 KW) |
|
Rated voltage and frequency : |
380V/50Hz/60Hz/60A |
|
Operating temperature: |
0℃-40℃ |
|
Control system: |
MPC6595 |
|
Moving mode: |
imported TBI rolling ball screw |
Application industry
Metal cutting, electrical switch manufacturing, elevator manufacturing, house hold appliances, kitchen utensils and appliances manufacturing, tool processing, and various of machinery manufacturing processing industry. Used to cut a variety of thin sheet metal
professional, high quality cutting 0.1 ~ 2 mm carbon steel plate, stainless steel plate, can also be cutting galvanized sheet, electrolytic
plate and other metal materials.

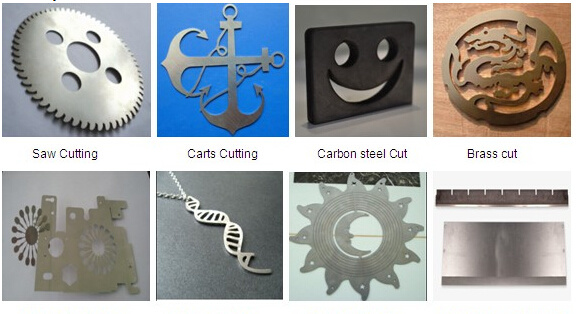

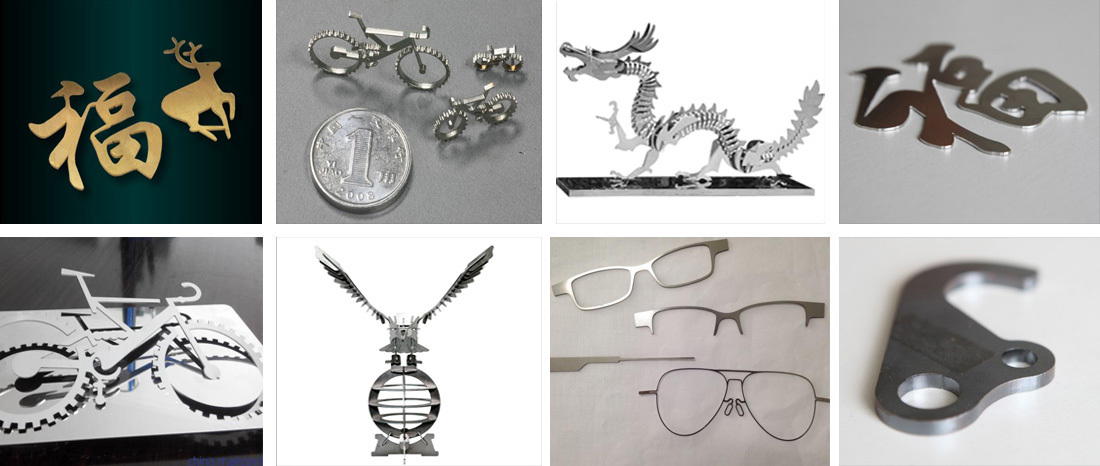

Samples
