XL0604 Fiber Laser Metal Cutting Machine
keywords：
E-mail：
XL0604 Fiber Laser Metal Cutting Machine
Product description
XL 0640 precision fiber laser cutting machine using imported Japan AC servo drive motor drive system, the machine kinematics grinding stage screw drive, linear guide rail to ensure high-speed equipment, high-precision, high reliability.Widely used in glasses,electronics, appliances and other precision machinery, hardware, microelectronics industry.

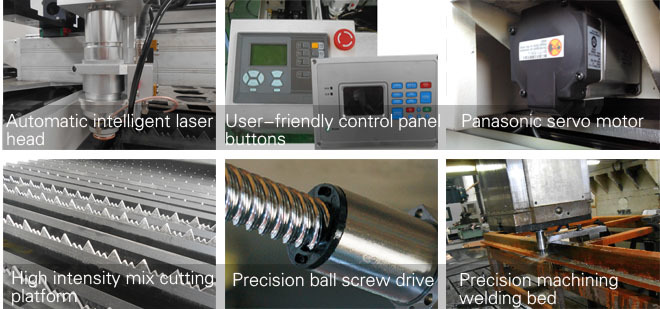

Features
1. Widely used in glasses, electronics, appliances and other precision machinery,hardware, microelectronics industry
2.600 °heat treatment and 24 hours with the furnace cooling, 8 meters gantry milling finishing, precision welding protection of carbon dioxide, to ensure the normal use for 20 years without deformation
3. Rail installation with precision collimator test, the accuracy is less than 0.01mm
4. Taiwan grinding screw drive.
5. High precision, speed, cutting surface smooth
6. Configure Yaskawa servo system inertia in driving high accuracy
7. Fully enclosed protective Cover
Technical Parameters
|
Model |
XL0604 |
|
Processing format : |
( L × W) 600mm * 370mm |
|
Laser power : |
300W / 500W / 1000W (optional) |
|
Dimensions: |
1700 * 1190 * 1850 |
|
Cutting material thickness |
0.1-2mm (depending on material) |
|
Repeat positioning accuracy: |
± 0.01mm / m |
|
Maximum speed: |
40m / min |
|
Maximum Acceleration: |
0.5G |
|
Machine weight: |
800kg |
|
Machine Operating temperature: |
0 ℃ -40 ℃ |
|
Transmission: |
grinding precision screw drive |
Application industry
Glasses, electronic appliances and other sophisticated hardware,
microelectronics industry

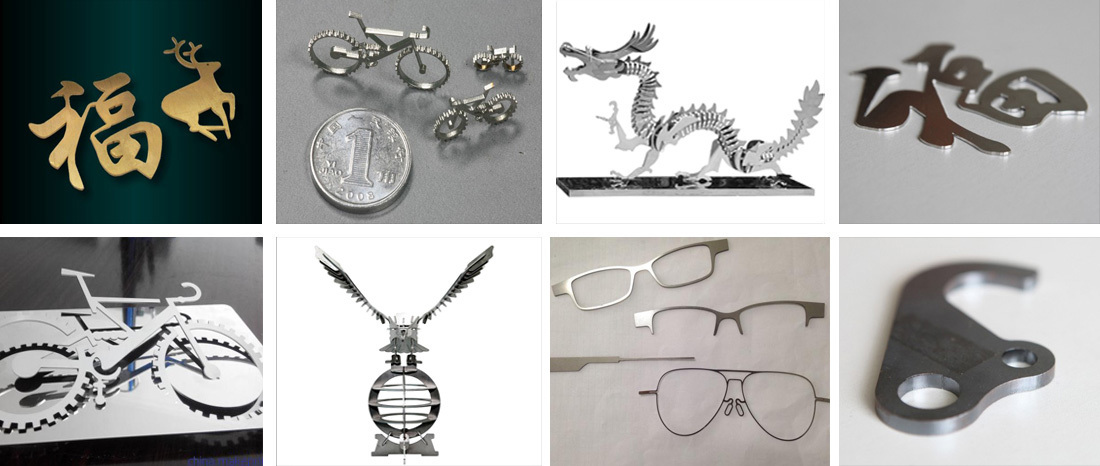

Application materials
Professional for cutting various thin metal sheet, steel plate, stainless steel plate,
cutting galvanized sheet, electrolytic plates and other metal materials.
