Cnc Router For Acrylic
★ Features:

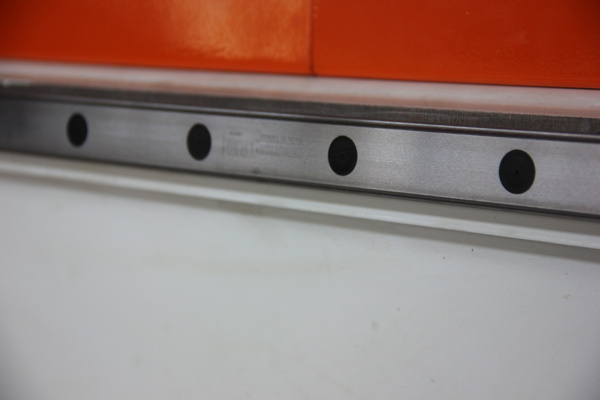

1.The imported straight-line party type guide rail,double row four row ball slide block,loading capacity,smooth
operation,highprecision,long life.Import the ball screw high precision,lower knives accurately.
2. The matching for choose NSK bearings imported from Japan's high-speed water-cooled motor.6 KW aircooled
spindle 4.5 KW main spindle big power,stable performance.
3. On-line computer typed macro control system,adopting unique intelligent budget rules,give full play to the motor
potential and achieve high speed speed processing,song linear synchronous,curve more perfect.
4. Software compatibility and can be compatible type3 / Actcam /Castmate /Wentai and so no many kinds of CAD/CAM
design software.
5. Six partition vacuum adsorption mesa,can be effective in different size adsorption material.
6. By using high-speed drive stepping motor and drive,Y axis adopt double motor drive,make
high-speed operation of the 25 m/point above empty line speed,with strong cutting spindle
can make the sculpture speed more improved.
Parameter
|
X Working Area |
1300mm |
|
Y Working Area |
2500mm |
|
Z Working Area |
200mm |
|
Traveling Positioning Accuracy |
±0.05mm |
|
Repositioning Positioning Accuracy |
±0.05mm |
|
Table Surface |
Vacuum table |
|
X,Y ,Z Structure |
XY gear wheel, Z ball screw |
|
Max. Power Consumption(Without spindle) |
1.84KW |
|
Max. Rapid Travel Rate |
25000mm/min |
|
Max. Working Speed |
15000mm/min |
|
Spindle Power Motor |
5.5KW water cooling Dia. 100mm |
|
Spindle Speed |
0-24000r/min |
|
Drive Motor |
servo motor |
|
Driver |
servo friver |
|
Variable frequency driver |
XFT-3021K |
|
Command |
G-code*.u00*.mmg*.plt |
|
Working voltage |
AC220V/50Hz |
|
Control System |
NC Studio or DSP |
|
Guide rail |
30 Square rail (TAIWAN BRAND:TBI) |
|
Control cabinet |
Independent cabinet
|
★ Application:
Mainly used for wood furniture industry like processing wood door,cabinet door, art and craft
door, MDF cutting, wood board cutting and processing other nonmetal materials, etc.
Samples :
