XL1325 wood ATC CNC router machine

XL1325 wood ATC cnc router machine,mainly used to make solid wood furniture, wood doors ,wood cabinet, tables and Chairs, decoration furniture,wood crafts, gift box, jewelry box, wood cnc router

keywords：

cnc lathe machining center lathing cnc routers mini cnc routers cnc milling machines cnc drilling machines

E-mail：

xlcncrouter@gmail.com

Message

XL1325 wood ATC CNC router machine

Features
♦ Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,
Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
♦ Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
♦ ball screw in Y axis instead of racks ,it is more precision

Parameter

Working area	1300*2500mm
Z working area	200mm
Positioning accuracy	±0.05mm
Working accuracy	±0.05mm
Max working speed	10m/min
Max travilling speed	15m/min
Spindle power	9KW
Spindle rotary speed	0-18000r/min
Machine structure	Steel structure
Table structure	Vacuum table with 6 zones
Control system	Yuanbao 350
Drive motor	Huichuan Servo motor
Cooling system	Water pump
XYZ move mode	XY gear wheel and square guide way, Z ball screw and square guide way
Working voltage	380V/50HZ
Software	Wentai or Type3
Command language	G-code
Package	2.3x3.7x1.9m

♦Furniture Industry: wood doors, cabinets, tables,chairs
♦ Advertising Industry:signage,logo,badges,display board,meeting sign board,billboard
♦ Artwork and Decoration Industry:wood crafts, gift box, jewelry box
♦ Electronic Industry:circuit board, insulation material
♦ Music Industry: musical instrments, loudspeaker box
♦ Soft Metal: aluminum, brass

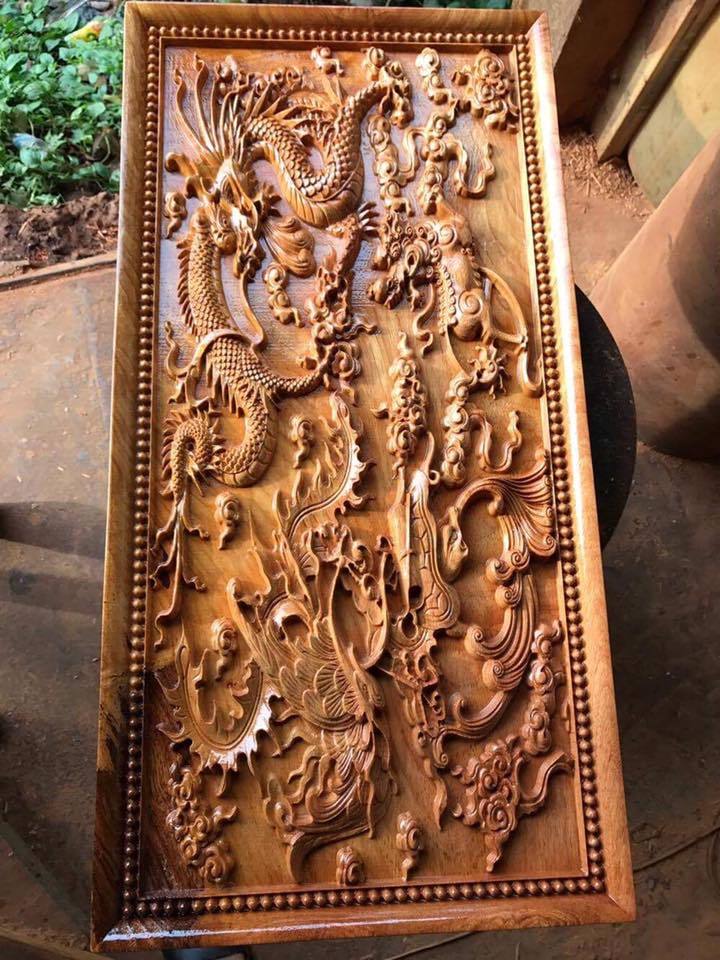

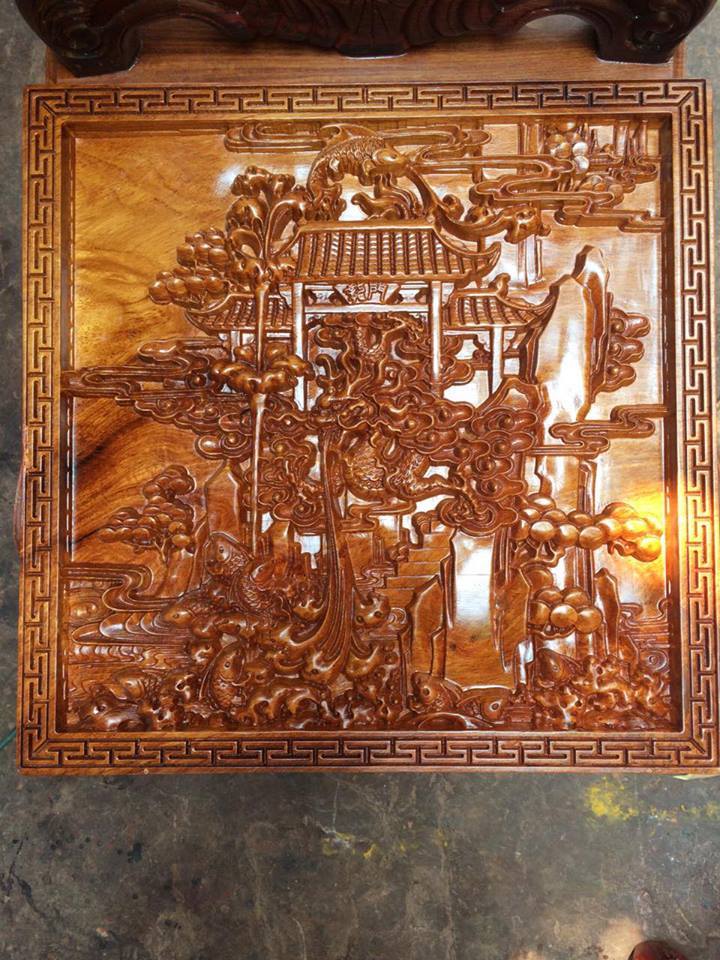

Samples:
