XL2040 heavy duty styrofoam 5 axis cnc cutting machine
keywords：
E-mail：

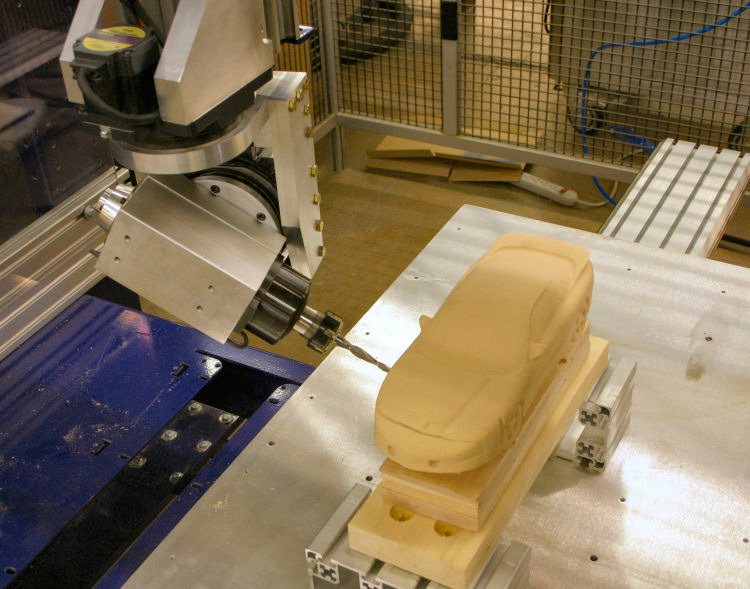

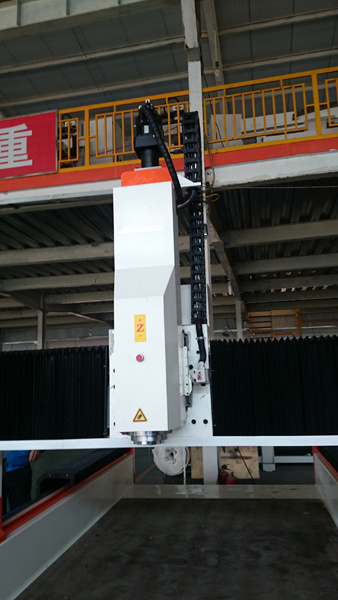

XL2040 heavy duty styrofoam 5 axis cnc cutting machine
Features
● Features self-lubricating, life-long maintenance-free Japanese guide rail.
● Italian high-speed spindle, with top speed of 10000 RPM, guaranteeing maximum processing efficiency and productivity.
● Whole working table cast by resin sand. The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.
● Taiwan Syntec controller can read the codes in an efficient manner. On-line simulation and monitoring function are available. Processing efficiency and safety are guaranteed.
Parameter
|
Working area |
X axis |
2000mm, 2500mm optional |
|
Y axis |
4000mm, 4500mm, 5000mm optional |
|
|
Z axis |
800mm |
|
|
Table size |
2000*4000 mm (other size optional) |
|
|
Transmission |
X/Y rack and pinion drive, Z ball screw drive |
|
|
Table structure |
Cast iron table |
|
|
Spindle power |
6.0KW HSD ES794 water cooling spindle |
|
|
Spindle speed |
0-10000 r/min |
|
|
Spindle inner cone hole |
ISO40(MAX tool diameter ￠32mm) |
|
|
Driving system |
Servo |
|
|
Speed |
MAX Travelling speed :16000 mm/min |
|
|
MAX Working speed :10000 mm/min |
||
|
Working voltage |
AC380V/3PH/50HZ |
|
|
Controller |
Syntec |
|
|
Operating command |
G code |
|
|
Gross weight |
8500 KG |
|
Application fields and materials
Ideal for automobile mold industry, suitable for EPS, casting wood mold, automobile interior decoration, engineering plastic and other non-metal materials.
Samples
