XL M25BT Spindle 90° Turning CNC Router

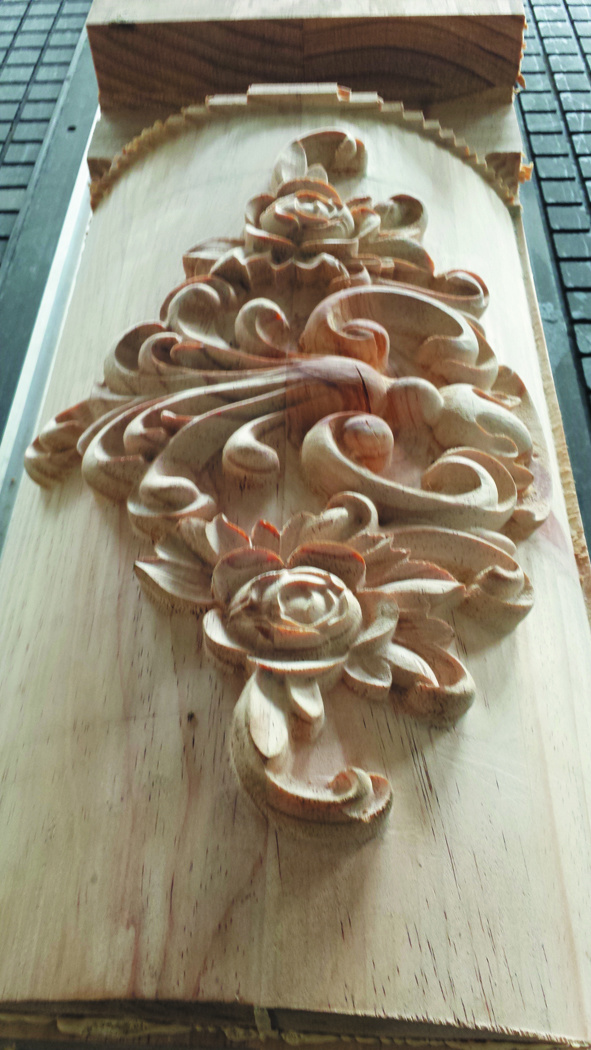

wood handling cnc router machine, this machine can engrave radian wood furniture ,for the more thick wood materials which is not normal used, this is special designed for special usages

keywords：

wood cnc routers wood engraving cnc router machines DIY cnc routers wood cnc machinin

E-mail：

xlcncrouter@gmail.com

Message

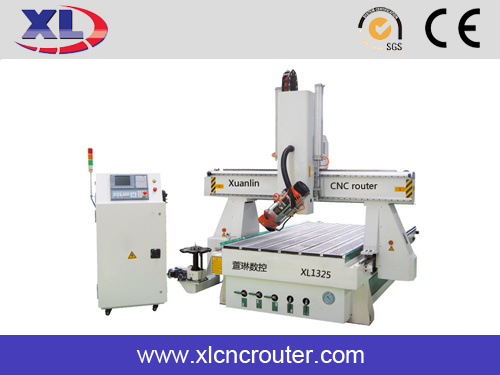

XL M25BT Spindle 90° Turning CNC Router

Application:
Mainly used for wood furniture industry like processing wood door,cabinet door, art and craft door, MDF cutting, wood board cutting and processing other nonmetal materials, etc.

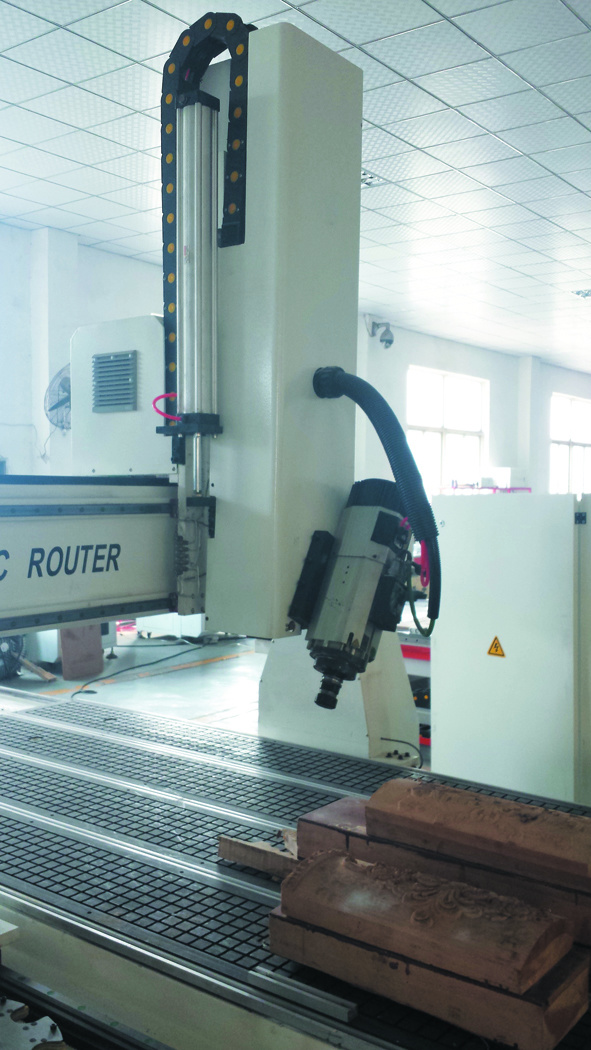

♦The spindle can rotate 90 degree, can make multi-kinds of surface
Breakpoint specific memory, power outages continued carving, processing time forecast, and
other functions to ensure that accidental processing
♦ Big steel tube welded structure, after aging and tempering treatment, reliable and stable and not easy to deformation.
♦ Top-quality components, HSD ATC spindle, Delta inverter, TBI ball screw,
Yaskawa servo motors, Syntec control system and so on.Long-time working time, high precision and efficiency.
♦ Carrousel Tool Magazine system with 8 forks and 4 tool holders , which is loaded with the spindle , make the machine change tools quickly and save time.
♦ Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.

Parameter

X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	450mm
Table size	1300x2500mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
Table Surface	By clamp
X,Y ,Z Structure	XY gear wheel, Z ball screw
Max. Power Consumption(Without spindle)	1.84KW
Max. Rapid Travel Rate	25000mm/min
Max. Working Speed	15000mm/min
Spindle	Italy 4.5Kw 4 aixs HSD spindle
Spindle Speed	0-18000r/min
Drive Motor	Japan Yaskawa
Driver	Japan Yaskawa
Command	G-code.u00.mmg*.plt
Working voltage	AC380V/60Hz
Control System	Taiwan Syntec 4 axis control system
Guide rail	25 Square rail (TAIWAN BRAND:HIWIN )
Control cabinet	Independent cabinet

★ Application:
Mainly used for wood furniture industry like processing wood door,cabinet door, art and craft door, MDF
cutting, wood board cutting and processing other nonmetal materials, etc.
