Wood Furniture Work Center

wood handling cnc router machine this machine mainly used to produce panel wood furniture, produce kitchen cabinet furniture, house decoration furniture,

keywords：

cnc routers hot sale cnc wood routers cnc router machines for wood cnc router manufacturer cnc router agents cnc router buyer

E-mail：

xlcncrouter@gmail.com

Message

Wood Furniture Work Center

Industries and materials:

Furniture: can process cabint, wood door, soild wood, plate-type, windows, table,chairs, etc.

Decoration: screen, wave plate, huge-scale hanging, advertisment plates, markings makiing.

Arts: can engrave on man-made stone, wood, bamboo, marble, acrylic, double-colored board beautiful drawings and letters.

Features
1 All machine heads can work at the same time,can also work alone,many times increasing in

efficiency
2 Can also control the machine heads independently,can use only one head to process and make increasing the working area
3 Adopts double-nut ball screw,imported square guide rail,the adoption of the break-point memory,guaranty in the accident(power off) or
the next day can process
4 Gantry movement,long time use no distortion,the more precise positioning accuracy
5 Large cutting power
6 Well compatibility in software:all kind of 3D and JD caving software
7 Can make the quantity of the heads and the working area for the machine as per customer`s request
Parameter

Model	XL1325
X-Y-Z axis working area	1,300 x 2,550 x 230mm
Machine size	2,650x 3,150mm
Resolutions	0.0025mm
X-Y movement	rack and pinion, gear drive/Taiwan
Z movement	ball screw drive/Germany
Guide	Linear 30 square/Taiwan
Max. speed	60,000mm/min
Max. cutting speed	30,000mm/min
Spindle power	4.5kw&6KW(aircooling)/Italy
Spindle speed	18,000rpm
Inverter power	9kw
Drive motors	Servo/Japan
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.0
Collet	ISO30-12.7mm,6mm,3.175mm
Software	Type3 Software/France
Controls	SYNTEC EMBED_CNC Control System
Packing dimensions	2300 x 3350 x 2280mm,2500kgs
Equipments included	a.Vacuum hold down b.Oil lubrication system c.dust collector system

Industries and materials:
Furniture: can process cabint, wood door, soild wood, plate-type, windows, table,chairs, etc.
Decoration: screen, wave plate, huge-scale hanging, advertisment plates, markings makiing.

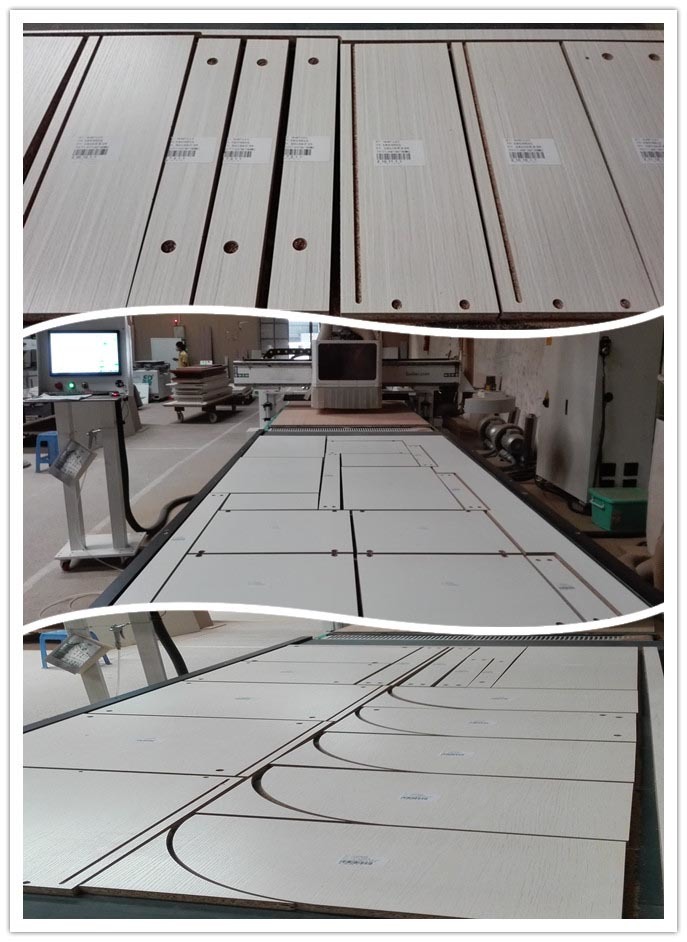

Samples
