XL6060 Metal mold engraving cnc router
keywords：
E-mail：
XL6060 Metal mold engraving cnc router
★ Features:
1.whole cast-iron structure, steady structure, high rigidity,precision 0.01mm.Features:
2.Three axis all use Germany ball screw and Taiwan linear orbits, also installed with Japanbevel math bearing for ball screw to make sure the accuracy and reposition precision.
3. Imported Taiwan SYNETC system, This system has break point memory mode and special saving mode of different points, so that can make sure continuous working after electronic drop or other postpone situation. The function can guarantee the processing precision of long time operation..
4. Adopt table movement to keep stable.
5. Adopt high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency , long-lifetime, can be a long time continuous working .
Parameter
|
Model |
XL6060 |
|
X,Y Working area |
600X600mm |
|
Z Working area |
180mm |
|
Feeding Height |
240mm |
|
Table Size |
640X640mm |
|
Lathe Structure |
Cast Iron |
|
Working Accuracy |
0.01mm |
|
Repositioning Accuracy |
0.008mm |
|
Spindle Power |
2.2KW |
|
Spindle Rotating Speed |
0-24000rpm/min |
|
Control System |
NCSTUDIO |
|
Drive System |
Servo |
|
Max. Travelling Speed |
12m/min |
|
Max. Working Speed |
8m/min |
|
Working Voltage |
AC220V/50HZ |
|
Machine Weight |
1.5t |
|
Machine size |
830*800*1450mm |
Applications:
1. Mainly suitable for high-precision mould industry, toy industry, and art & craft industry, etc.
2. Applicable for processing copper electrode, mini stamping mould, gold stamping mould,
hardware mould, rubber mould and so forth.
3. Also can be used for processing moulds of watch accessories, glasses, jewelry, etc

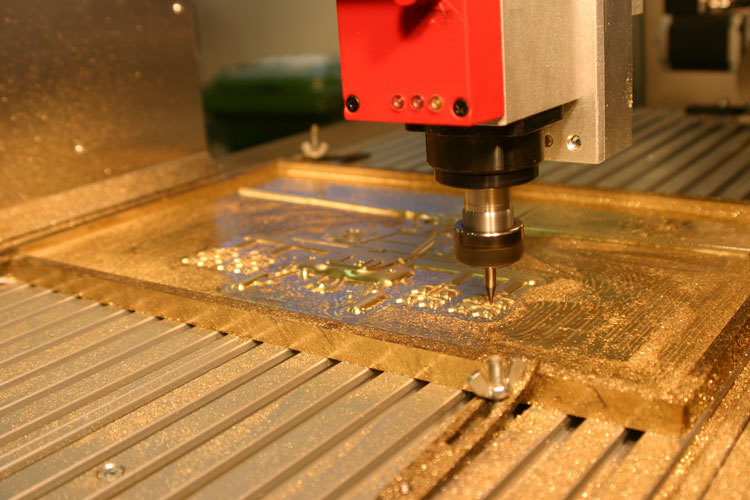

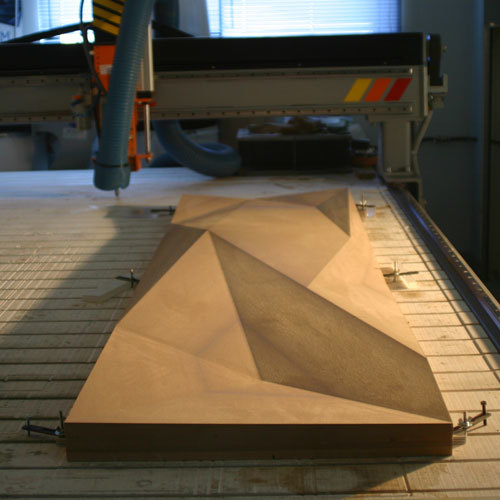

Samples
