Relief Woodworking Cnc Router

This machine is mainly used in furniture making industry, furniture decoration industry, wood craft industry, wood decoration industry, automotive tooling industry, solid wood furniture, solid wood door, classical furniture, decoration material, door cabinets, computer tables, plate furniture, office furniture, wooden sound box, wooden kitchen furniture and other processing.

Features

1. Ten spindles working together, it can finish the workload of 10 machines in the same time.
2. Three axes adopt Taiwan Hiwin high precision square rail; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Taiwan rolling ball screw，with high precision and long life time.
3. Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/ Wentai etc.
4. Has the function of re-carving after break point and power failure.
5. Adopting advanced NC studio controller, convenient operation.
Parameter

Model	XL2018
working travel: XYZ	2000mm1800mm200mm
work holding	T-slot table with clamp
processor	PCI
Interface	15 pins
command	G code
surroundings for software	Windows98/2000/×p
work voltage	AC 220V/380V/50HZ
spindle power	8×2.2kw water cooling spindle
spindle rotating speed	0-24000rpm/min
max feed	≥17m/min
motor	stepper/servo
Controlling system	DSP,Mach3,NC studio optional
XYZ structure	Rack&pinion for XY axis,ball screw for Z axis
Orbit	All square orbit/round orbit optional
Design software	Artcam artengraver,type3,ucancamV9
Guaranty	1 year
After sales service	Long time freely provide technical support and training,engineer also available to service machinery overseas

Introduction：
This machine is mainly used in furniture making industry, furniture decoration industry, wood craft industry, wood decoration industry, automotive tooling industry, solid wood furniture, solid wood door, classical furniture, decoration material, door cabinets, computer tables, plate furniture, office furniture, wooden sound box, wooden kitchen furniture and other processing.

Also suitable for processing Acrylic, PVC board, Carbon Plates, Aluminum Composit Sheet, Stone, Marble, Granit, Glass, Metal sheet (Color metal like aluminum sheet, Gold, Silver, Brass,etc), etc.

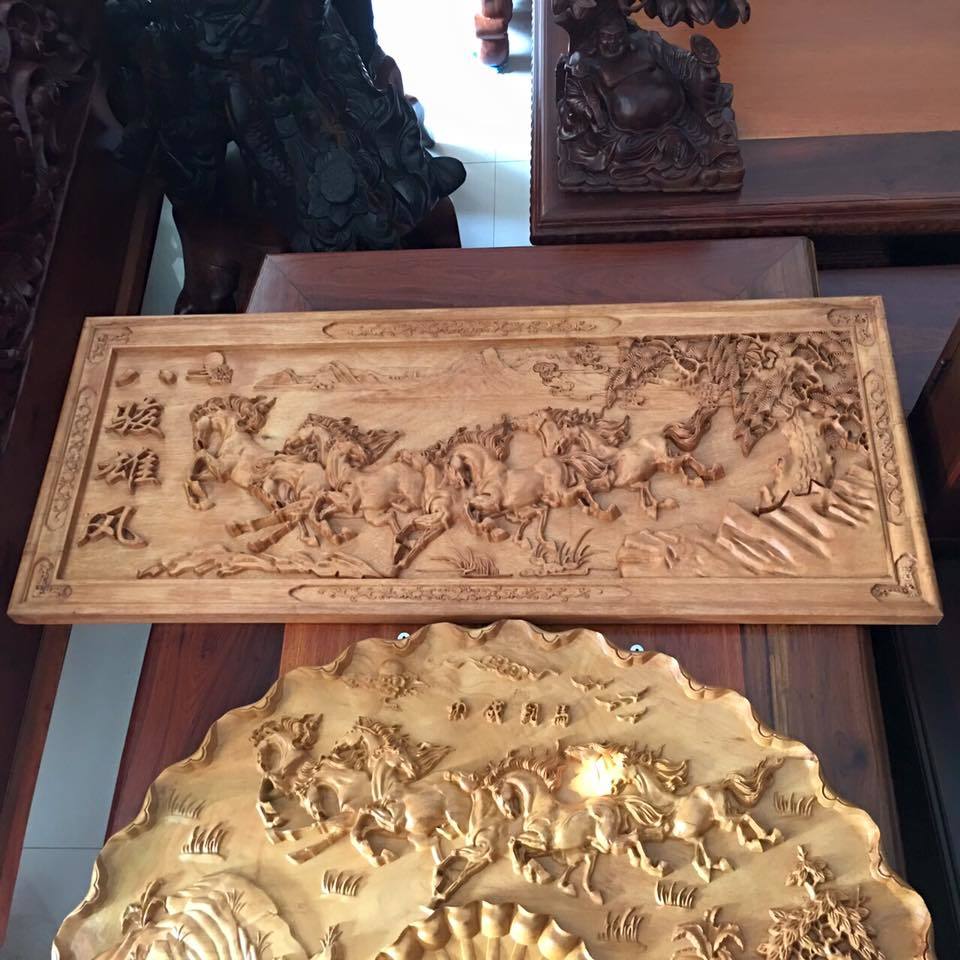

Samples:
