XLY12025-8 CNC Routers

Features

1. the machine can engrave 4 woods at one time
2. you can install a flat table over the 4 rotary, making flat engraving
3. adopting servo motors, little generating heat after long-time work, high stability
4. adopting Ncstudio 4-axis control system
5. adopting imported TBI square guide rail, making machine move stability and long lifetime

6.4 axis wood router for rotary Portable 4 axis DSP controller Taiwan TBI square orbits Multi heads

Rotary clamp 200-350mm

Parameter

Model	XLY12025-8
Working Area	1200mmx250mmx8
Working size for single rotary clamp	300*1200mm
Body structure	Steel structure
Working accuracy	±0.05mm
Requisitioning accuracy	±0.05mm
Traveling speed	25m/min
Working speed	15m/min
spindle	3KW*8 water cooling spindle
Spindle rotary spee	0-24000rpm
Control system	4-axis DSP A18 controller
Drive	Servo motor and driver
Transmission mode	Gear wheel for XY axis, ball screw for Z axis
imported square guide way	X Y Z axis
Voltage	AC380V 50HZ
Max. power consumption(without spindle	1,840KW
Command language	G-code,u00,mmg,*plt
Software	Type3 /Wentai/ JD
Cutters	10 pieces with diameter of 6 and 12.7

Application:

processing wood cylinder like table legs, chair legs, stair rails and so on.

Also making relief on the flat table.
This machine professional engraving the 3D crafts,cylinder products and complicated 3D drawing
by 360° turn engraving.
The machine engraving work by table moving. This is biggest difference of the gantry morving.
So, it's process more stable and higher precision

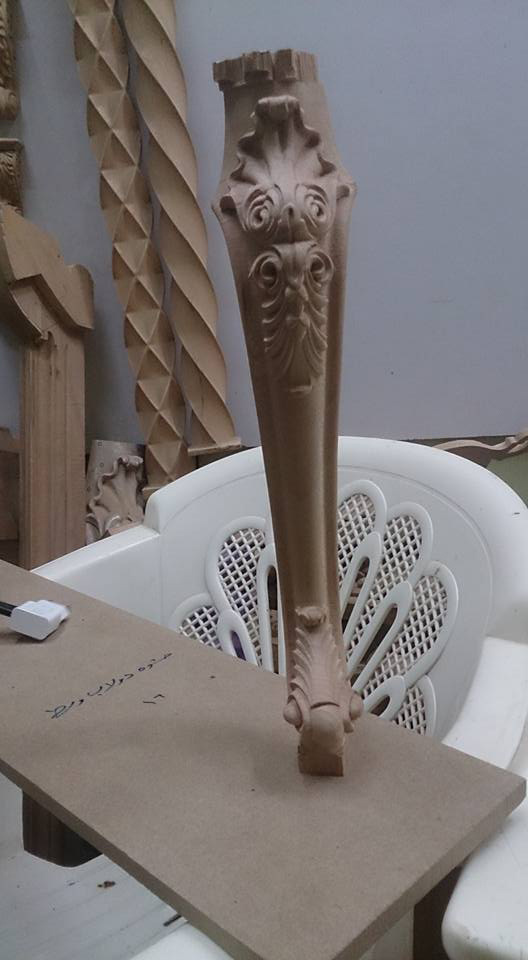

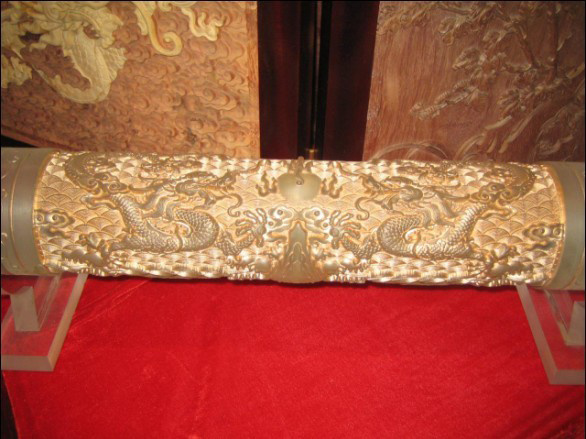

Samples
