Fiber Laser Tube Cutting Machines

For easy entry into the world of fiber Laser Cutting to ultra-high-speed cutting or extra-large sheet processing, a range of highly efficient Fiber Laser Machine have the flexibility to meet today’s production needs.

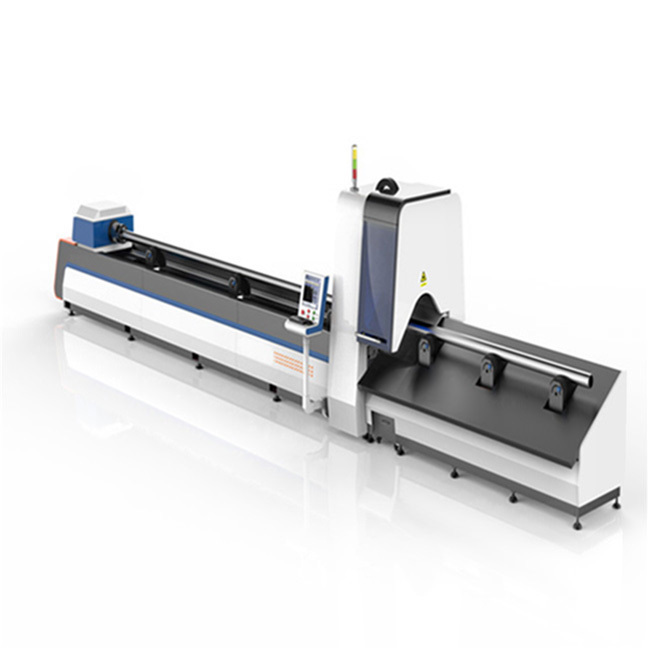

XUANLIN Cnc Laser tube cutter is designed for high production tube fabrication. They provide efficient processing of round, rectangular, square or other standard tube profiles at optimal speeds using a CNC Fiber Laser. The integration of leading-brand components assures you of top performance and high reliability. Systems are engineered for quick set up of different tube sizes and built for ease of service and maintenance.
High production Laser Tube Cutting machine can cut round, rectangular, square or other standard tube profiles to satisfy a range of Tube Laser Cutting needs.

Auto Focus Laser Cutting Head

Without Manual Focusing
The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
Bigger Adjustment Range
Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
Long Service Life
Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

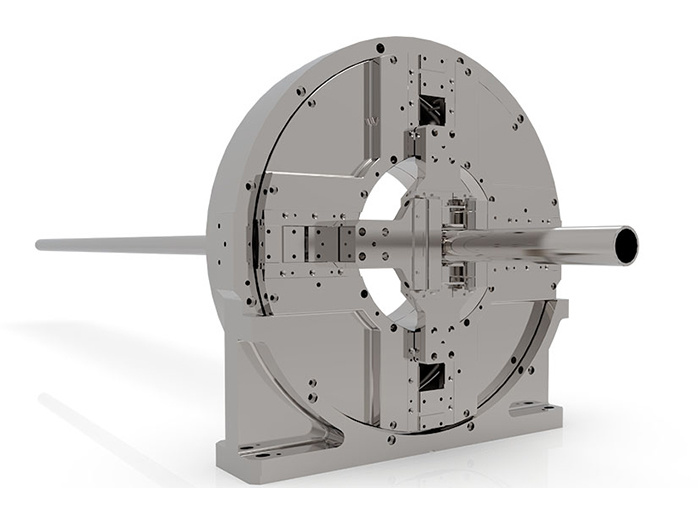

Clamp Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.

tube laser cutting machine

Technical Parameters

Machine model	XL60MA
Laser power	1000W 2000W 3000W 4000W 6000W (Optional)
Dimensions	1269453452638mm
Working area	Hold diameter: Φ20mm-Φ300mm
Repeat positioning accuracy	±0.02mm
Maximum speed	1.5G
Max. acceleration	±0.02mm/m
Voltage and frequency	380V 50Hz/60HZ

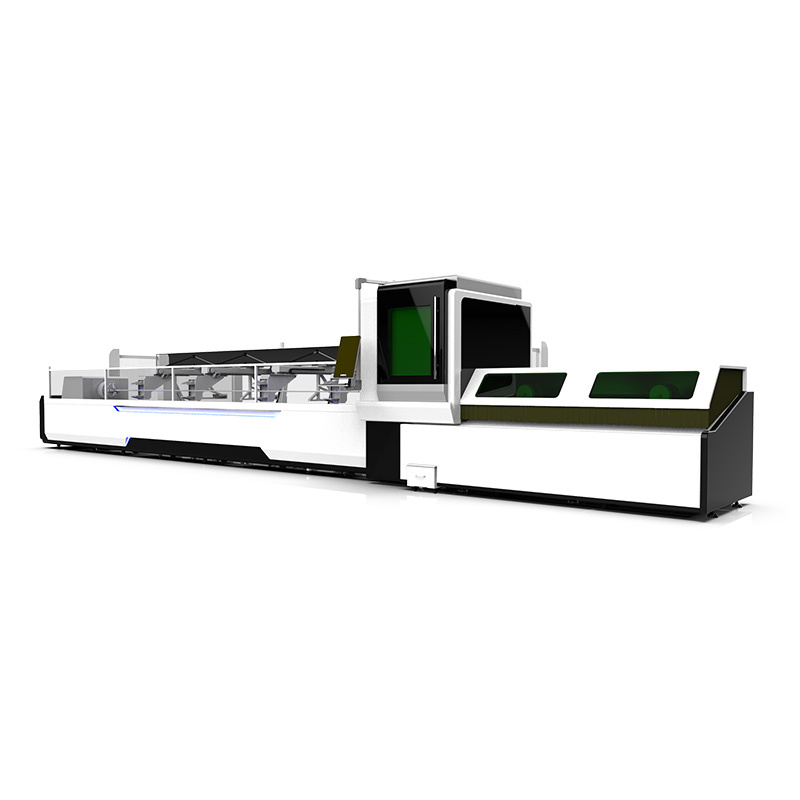

Full-automatic feeding and unloading material device

Automatic Feeding
Realize the intelligent material separation, feeding and seamless docking with the Fiber Laser Cutting Machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Unloading
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.

fiber laser tube cutting machine

Machine Advantage

Wireless Controller
It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.

LF60MA pipe laser cutting

Automatic Stroke Protection

Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.

LF60MA fiber laser machine

Intelligent Alarm System

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment.

LF60MA tube cutting

Industry Applications

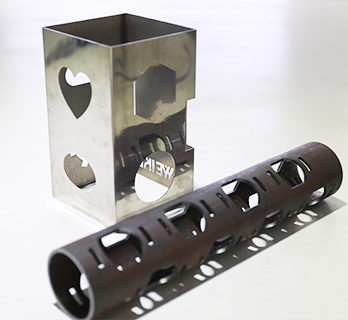

Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber Laser Cutting Machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional Tube Fiber Laser Cutting machine —LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

fiber laser machine

cnc fiber laser

Looking for ideal Tube Cutting Laser Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Tube Laser Cutter are quality guaranteed. We are China Origin Factory of Han's laser tube cutting . If you have any question, please feel free to contact us.
